Country of Origin
United States
Shipping Weight
0.1 pounds
Manufacturer P/N
MS24392-10
Schedule B Code
7307.99.4000

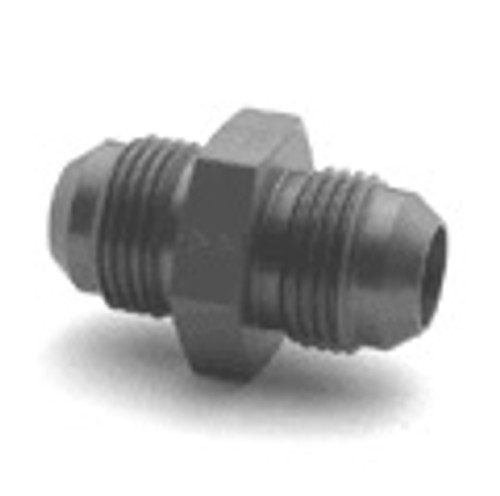

Thread Class: 3A All Ends Maximum Operating Temp: 250.0 Deg Fahrenheit Single Response End Item Identification: Sikorsky Model Ch-54A And Ch-54B Cargo Transport Helicopter Connection Style: Flared (Tube) All Ends Leg Length: 0.609 Inches Minimum All Ends Connection Type: Threaded External Tube All Ends Nominal Thread Size: 0.875 Inches All Ends Seat Angle: 37.000 Degrees All Ends Nominal Outside Diameter Tube Accommodated: 0.625 Inches All Ends Nominal Overall Length: 1.828 Inches Material: Steel Comp 12L14 Overall Or Steel Comp 1010 Overall Material Document And Classification: 66,Carbon Steel,0.20 Percent Max Fed Std Single Material Response Overall Media For Which Designed: Hydraulic Fluid Single Response Surface Treatment: Cadmium Overall Surface Treatment Document And Classification: Qq-P-416,Ty 2,Cl 3 Fed Spec Single Treatment Response Overall Style Designator: Flared W/ Center Wrenching Facility Thread Series Designator: UNJF All Ends Specification/Standard Data: 96906-MS24392 Government Standard
