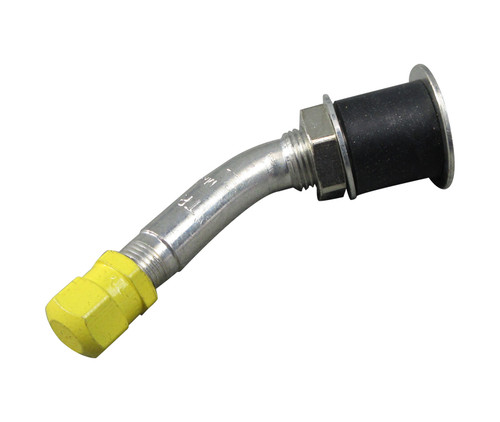

Tire & Rim Association TR716-05 Valve, Pneumatic Tire

Features

• Size: Standard number
• Design Type: Preformed, single bend, nonconvertible valve
• Usage Design: Tubeless tire
• Mounting Location: Rim
• Attachment Method: Inserted from inside rim
• Application Method: Screw-on rim

(See corresponding image above):

• Thread: .1900-32UNJF-3B
• A (MAX): 0.968
• C: .349-.339
• D (MIN): .230
• F (REF): .310
• G (MAX): .313
• H (MAX): .625
• J: .690-.686
• K:.103-.098
• V (REF): .020
• W (MAX): .528
• X (MAX): .568
• Approx. Weight (LBS/100): .760
• Thread Type: Unified
• Configuration 1: Two Lug
• Configuration 2: Floating
• Configuration 3: Self-Sealing
• Lock: Crimp Lock
• Strength: 125KSI - 900Mpa
