Country of Origin
United States
Shipping Weight
0.1 pounds
Manufacturer P/N

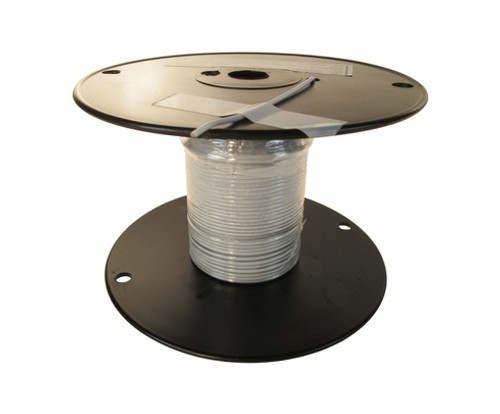

M27500/24SB4T23
Schedule B Code
8548.90.0100
Ship Dimensions
0 x 0 x 0 inches
Material
Tin Plated Copper/XLETFE
Cross-Sectional Shape Style: Round Temp Rating: 150.0 Deg Celsius Iii Conductor Quantity: 4 Tracer Color: Blue Single Tracer Second Conductor Tracer Color: Green Single Tracer Fourth Conductor Tracer Color: Orange Single Tracer Third Conductor Strand Quantity Per Conductor: 19 All Conductors Conductor Form: Stranded All Conductors Round Conductor Size: 24 Awg All Conductors Strand Awg Size Per Conductor: 36 All Conductors Conductor Arrangement And Quantity: 4 Singles Voltage Rating: 600.0 Maximum Root Mean Square (Rms) Operating Voltage All Conductors Color: White 3Rd Position Jacket Cable Color: White 1St Position Primary Insulation All Conductors Material: Copper 2Nd Position Shield Braid, Metallic Cable Material: Copper Core Conductor All Conductors Material: Plastic Cross-Linked Modified Ethylene Tetrafluoroethylene 1St Position Primary Insulation All Conductors Material: Plastic Cross-Linked Modified Ethylene Tetrafluoroethylene 3Rd Position Jacket Cable Material Document And Classification: Astm B33 Assn Std Single Material Response Core Conductor All Conductors Surface Treatment: Tin Core Conductor All Conductors Surface Treatment: Tin 3Rd Position Shield Braid, Metallic Cable Surface Treatment Document And Classification: Astm B33 Assn Std Single Treatment Response Core Conductor All Conductors
