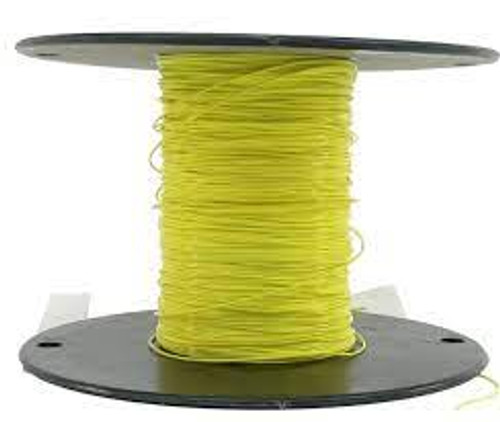

Military Specification M22759/16-20-4 Yellow 20 AWG PTFE Tapes/Coated Fiberglass Braid Wire - 100-Ft/Roll

Military Specification M22759/16-20-4 Yellow 20 AWG PTFE Tapes/Coated Fiberglass Braid Wire - 100-Ft/Roll
Our Part #: SGP126081-X100
Manufacture Part #: M22759-16-20-4
Our Price: $32.00
Price Per Roll - (Roll = 100 ft)

Bulk Shop & Save

  • 5 - 9 $31.00 ($0.31 ft)
  • 10 - 24 $30.00 ($0.30 ft)
  • 25 - 49 $29.00 ($0.29 ft)
  • 50 + $28.00 ($0.28 ft)
Adding to cart… The item has been added

world wide icon INTERNATIONAL SHIPPING

SkyGeek welcomes international orders!

Please note: such orders are funneled into our NY warehouse and may take an extra 7-10 days to process. The benefit to this: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.

At SkyGeek.com M22759 Tefzel Wire is priced by the Foot and carries a 100' min order quantity.

MIL-W-22759 Tefzel hookup wire has extruded ETFE insulation for aerospace and other applications requiring light weight, tight diameter tolerances, and enhanced mechanical toughness. ETFE insulation also provides exceptional resistance to radiation and chemicals. Available in 9 different colors and gauges 1 to 24 as a continuous length.

Specifications:

  • Color: Yellow
  • AWG (Gauge): 20
  • Diameter (min-max): 0.058-0.062
  • Stranding: 19x32
Country of Origin
United States
Shipping Weight
0.05 pounds
ECCN
EAR99
Color Family
Yellow
Manufacturer P/N
M22759/16-20-4
Schedule B Code
8548.90.0100
Pack Quantity
100
Ship Dimensions
0 x 0 x 0 inches
Series
M22759/16
Color
Yellow
Material
Plastic PTFE
MIL-SPEC#
MIL-W-22759/16-20-4
SAE Spec#
AS22759/16-20-4
