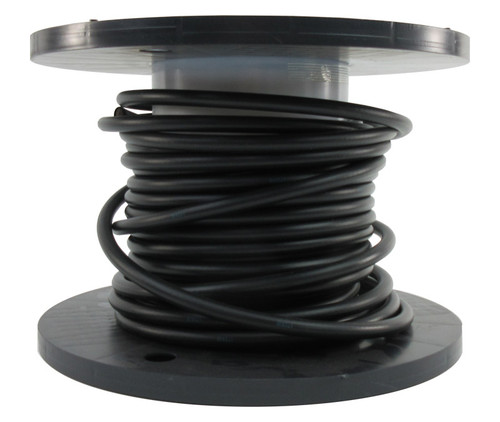

Military Specification M17/74-RG213 Cable, Radio Frequency - Sold per Foot

Military Specification M17/74-RG213 Cable, Radio Frequency - Sold per Foot
Military Specification M17/74-RG213 Cable, Radio Frequency - Sold per Foot
Military Specification M17/74-RG213 Cable, Radio Frequency - Sold per Foot
Military Specification M17/74-RG213 Cable, Radio Frequency - Sold per Foot
Military Specification M17/74-RG213 Cable, Radio Frequency - Sold per Foot
Our Part #: SGP125408
Manufacture Part #: M17-74-RG213
Our Price: $3.35
Price Per Foot

Bulk Shop & Save

  • 500 - 999 $3.30 ft.
  • 1000 - 2499 $3.25 ft.
  • 2500 - 4999 $3.20 ft.
  • 5000 + $3.15 ft.
Adding to cart… The item has been added

world wide icon INTERNATIONAL SHIPPING

SkyGeek welcomes international orders!

Please note: International orders are shipped from their respective locations, which may take an additional 7-10 days to process. We strive to consolidate items into one shipment to minimize duties and taxes. However, if items are located in different locations, separate shipments may be necessary.

Related Items

Military Specification M17/113-RG316 Cable, Radio Frequency - - 50-Foot Length

Military Specification M17/113-RG316 Cable, Radio Frequency - - 50-Foot Length

Military Specification M17/113-RG316 Cable, Radio Frequency - - 50-Foot Length

> View Details
PART #: SGP125397-X50
MFR PART #: M17-113-RG316
Our Price: $97.00
Adding to cart… The item has been added
Adding to cart… The item has been added
Military Specification M17/128-RG400 Cable, Radio Frequency - 15-Foot Length

Military Specification M17/128-RG400 Cable, Radio Frequency - 15-Foot Length

Military Specification M17/128-RG400 Cable, Radio Frequency - 15-Foot Length

> View Details
PART #: SGP125399-X15
MFR PART #: M17-128-RG400
Our Price: $89.55
Adding to cart… The item has been added
Adding to cart… The item has been added
Military Specification M17/138-00001 Cable, Radio Frequency - 50-Foot Length

Military Specification M17/138-00001 Cable, Radio Frequency - 50-Foot Length

Military Specification M17/138-00001 Cable, Radio Frequency - 50-Foot Length

> View Details
PART #: SGP125400-X50
MFR PART #: M17-138-00001
Our Price: $100.00
Adding to cart… The item has been added
Adding to cart… The item has been added
Description

All Coaxial cable is priced by the foot and carries a 100' min order quantity.

  • Cross-Sectional Shape Style: Round
  • Electrical Resistance: 50.0 Ohms Impedance
  • Cross Section Outside Diameter: 0.405 Inches Nominal
  • Iii Conductor Quantity: 1
  • Strand Quantity Per Conductor: 7 Single Conductor
  • Conductor Form: Stranded Single Conductor
  • Round Conductor Size: 13 Awg Single Conductor
  • Strand Awg Size Per Conductor: 21 Single Conductor
  • Conductor Arrangement And Quantity: 1 Coaxial
  • Voltage Rating: 10000.0 Maximum Root Mean Square (Rms) Operating Voltage Single Conductor
  • Material: Copper Core Conductor Single Conductor
  • Material Document And Classification: Qq-W-343,Soft Fed Spec Single Material Response Core Conductor Single Conductor
  • Center Conductor (inches) : BC 7/.0296" (.0888)
  • Dielectric (inches) : PE (.285)
  • Shield (inches) : 33BC (.318)
  • Jacket (inches) : PVC-IIA (.405)
  • Armor (inches) : NA
  • Weight (lbs / ft) : .111
  • Impedance ohms - Vp(%) : 50 +/-2 (66%)
  • Capacitance (pF/ft) : 30.8
  • Max Operating Voltage (vrms) : 5000
  • Temp. Range (°F) : -40 +185
    • Product Attributes
    Country of Origin
    United States
    Shipping Weight
    0.13 pounds
    ECCN
    EAR99
    Color Family
    Black
    Manufacturer P/N
    M17/74-RG213
    Schedule B Code
    8529.90.3800
    Pack Quantity
    1
    Series
    M17/
    Color
    Black
    Approvals and Conformities
    NSN
    6145-00-660-8711
    MIL-SPEC#
    RG-213/U MIL-C-17/74
