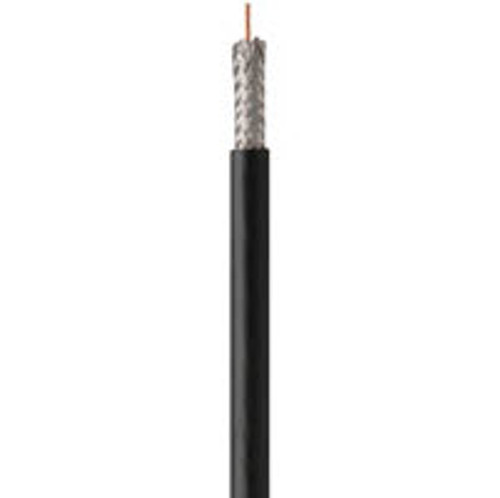

Military Specification M17/119-RG174 Cable, Radio Frequency - Sold per Foot

Military Specification M17/119-RG174 Cable, Radio Frequency - Sold per Foot
Military Specification M17/119-RG174 Cable, Radio Frequency - Sold per Foot
Military Specification M17/119-RG174 Cable, Radio Frequency - Sold per Foot
Our Part #: SGP125398
Manufacture Part #: M17-119-RG174
Our Price: $0.50
Price Per Foot
Adding to cart… The item has been added

world wide icon INTERNATIONAL SHIPPING

SkyGeek welcomes international orders!

Please note: such orders are funneled into our NY warehouse and may take an extra 7-10 days to process. The benefit to this: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.

Related Items

Military Specification M17/113-RG316 Cable, Radio Frequency - - 50-Foot Length

Military Specification M17/113-RG316 Cable, Radio Frequency - - 50-Foot Length

Military Specification M17/113-RG316 Cable, Radio Frequency - - 50-Foot Length

> View Details
PART #: SGP125397-X50
MFR PART #: M17-113-RG316
Our Price: $97.00
Adding to cart… The item has been added
Adding to cart… The item has been added
Military Specification M17/138-00001 Cable, Radio Frequency - 50-Foot Length

Military Specification M17/138-00001 Cable, Radio Frequency - 50-Foot Length

Military Specification M17/138-00001 Cable, Radio Frequency - 50-Foot Length

> View Details
PART #: SGP125400-X50
MFR PART #: M17-138-00001
Our Price: $100.00
Adding to cart… The item has been added
Adding to cart… The item has been added
Description

All Coaxial cable is priced by the foot and carries a 100' min order quantity.

  • Cross-Sectional Shape Style: Round
  • Electrical Resistance: 50.0 Ohms Impedance
  • Cross Section Outside Diameter: 0.110 Inches Nominal
  • Iii Conductor Quantity: 1
  • Nominal Capacitance In Picofarads: 32.2 Per Foot
  • Strand Quantity Per Conductor: 7 Single Conductor
  • Conductor Form: Stranded Single Conductor
  • Round Conductor Size: 26 Awg Single Conductor
  • Strand Awg Size Per Conductor: 34 Single Conductor
  • Conductor Arrangement And Quantity: 1 Coaxial
  • Voltage Rating: 1100.0 Maximum Root Mean Square (Rms) Operating Voltage Single Conductor
  • Color: Black 3Rd Position Jacket Single Conductor
  • Material: Plastic Polyethylene 1St Position Primary Insulation Single Conductor
  • Material: Plastic Polyvinyl Chloride 3Rd Position Jacket Single Conductor
  • Material: Copper 2Nd Position Shield Braid, Metallic Single Conductor
  • Material: Steel Core Conductor Single Conductor
  • Surface Treatment: Tin 2Nd Position Shield Braid, Metallic Single Conductor
  • Surface Treatment: Copper Core Conductor Single Conductor
  • Center Conductor (inches) : CCS 7/.0063" (.0189)
  • Dielectric (inches) : PE(.060)
  • Shield (inches) : 38TC (.078)
  • Jacket (inches) : PVC-IIA(.110)
  • Armor (inches) : NA
  • Weight (lbs / ft) : .009
  • Impedance ohms - Vp(%) : 50 +/-2 (66%)
  • Capacitance (pF/ft) : 30.8
  • Max Operating Voltage (vrms) : 1500
  • Temp. Range (°F) : -40 +185
    • Product Attributes
    Country of Origin
    United States
    Shipping Weight
    0.001 pounds
    ECCN
    EAR99
    Color Family
    Black
    Manufacturer P/N
    M17/119-RG174
    Schedule B Code
    8529.90.3800
    Pack Quantity
    1
    Series
    M17/
    Color
    Black
    Approvals and Conformities
    NSN
    6145-00-606-8237
    MIL-SPEC#
    RG-174A/U MIL-C-17/119
    Alternate PN#s
    425-1005-000
