INTERNATIONAL SHIPPING
Approvals and Conformities
Product Attributes
Country of Origin
United States
Shipping Weight
0.05 pounds
ECCN
9A991.d
Manufacturer P/N
7277-5-4
Schedule B Code
8536.20.0040
Pack Quantity
1

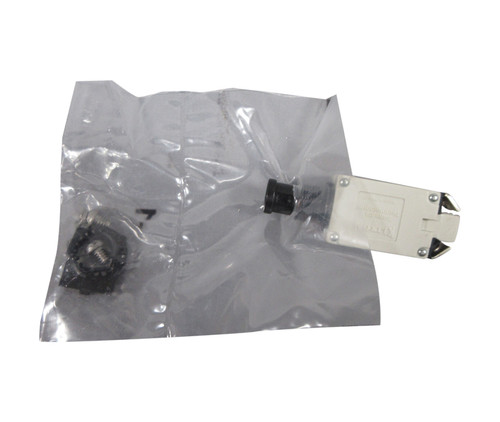

Klixon 7277 series is designed for applications that do not require the tighter performance characteristics and approvals of our military circuit breakers.
Single Phase, Non-Compensated, Low AMP, General Application
Single Phase, Non-Compensated, Low AMP, General Application
- Miniature size
- Light weight
- Trip free design
- Current ratings (½ to 20 amps)
- High vibration resistance
| Vibration | 10 G's minimum, 50-500 Hz | ||||||
| Mechanical Shock | 35 G's | ||||||
| Acceleration | 10 G's | ||||||
| Weight | 28 gm max. | ||||||
| Endurance 2500 cycles 5000 cycles 2500 cycles 5000 cycles 5000 cycles | 120 VAC, 400 Hz Inductive 120 VAC, 400 Hz Resistive 30 VDC, Inductive 30 VDC, Resistive Mechanical, no load | ||||||
| Interrupt Current | 0.50-5 amps: unlimited at 28VDC 2-5 amps: 800 amps at 120VAC, 400Hz | ||||||
| Trip Time | | ||||||
| Load | Seconds | ||||||
| 200% | 2-35 | ||||||
| 500% | 0.15-1.8 | ||||||
| 1000% | 0.028-0.55 | ||||||
| Calibration | | ||||||
| |||||||
