Klixon 7277 series is designed for applications that do not require the tighter performance characteristics and approvals of our military circuit breakers.

Single Phase, Non-Compensated, Low AMP, General Application

Miniature size
Light weight
Trip free design
Current ratings (½ to 20 amps)
High vibration resistance

Vibration

10 G's minimum, 50-500 Hz

Mechanical Shock

35 G's

Acceleration

10 G's

Weight

28 gm max.

Endurance

2500 cycles
5000 cycles
2500 cycles
5000 cycles
5000 cycles

120 VAC, 400 Hz Inductive
120 VAC, 400 Hz Resistive
30 VDC, Inductive
30 VDC, Resistive
Mechanical, no load

Interrupt Current

0.50-5 amps: unlimited at 28VDC
2-5 amps: 800 amps at 120VAC, 400Hz

Trip Time

Load

Seconds

200%

2-35

500%

0.15-1.8

1000%

0.028-0.55

Calibration

Temp ºC	Min. ULT Trip	Max. ULT Trip
+25	110%	150%

Product Attributes

Country of Origin

United States

Shipping Weight

0.05 pounds

ECCN

EAR99

Manufacturer P/N

7277-5-2-1/2

Schedule B Code

8536.20.0040

Pack Quantity

Ship Dimensions

3 x 1 x 1 inches

Approvals and Conformities

Reviews

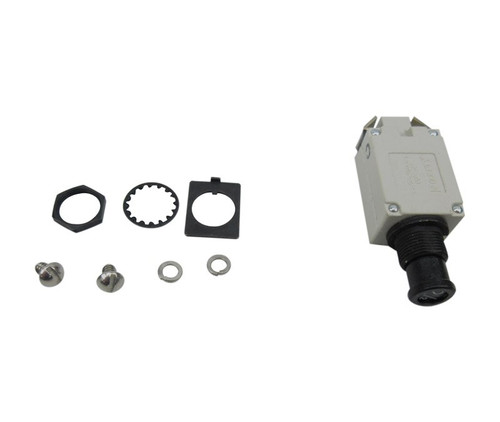

KLIXON® 7277-5-2-1/2 Circuit Breaker - 2-1/2 AMP - 10/Pack
