Country of Origin
United States
Shipping Weight
0.05 pounds
Schedule B Code
8536.20.0040

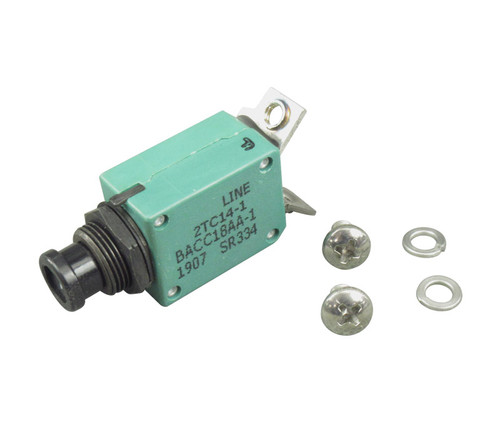

Bushing Length: 0.250 Inches Nominal Body Length: 1.781 Inches Maximum Body Width: 0.750 Inches Nominal Case Material: Plastic Center To Center Distance Between Terminals Parallel To Length: 0.704 Inches Nominal Fragility Factor: Moderately Rugged Mounting Surface To Terminal End Distance: 1.218 Inches Nominal Pole Quantity: 1 Mounting Facility Type And Quantity: 1 Threaded Bushing Storage Type: General Purpose Warehouse Thread Quantity Per Inch: 32 Maximum Continuous Load Current Rating Per Pole: 1.0 Amperes Ac Single Location And 1.0 Amperes Dc Single Location Operating Voltage Type And Rating Per Pole In Volts: 120.0 Ac Single Location And 30.0 Dc Single Location Maximum Interrupting Capacity Current Type And Rating Per Pole In Amps: 2000.0 Ac Single Location And 5000.0 Dc Single Location Circuit Protection Type: Overcurrent Single Location Trip Release Method: Thermal Single Location Trip Release Characteristic: Time Delay Single Location Ultimate Trip Rating Of Continuous Current Rating Per Pole In Percent: 150.0 Single Location Reset Method: Manual Main Contact Tripping Mechanism Type: Trip Free Manual Actuator Type And Quantity: 1 Push-Pull Actuator Function: Trip-Reset Actuator Position Designation: At Pole One Internal Trip Release Configuration: Series Trip Single Location Nominal Thread Size: 0.469 Inches Trip Delay Time In Seconds Per Rated Continuous Current: 4.000 Minimum At 200 Pct Single Location And 20.000 Maximum At 200 Pct Single Location Inclosure Protection Type For Which Designed: Corrosion Resistant And Vibrationproof Trip Release Ambient Temp Rating: 25.0 Deg Celsius Nominal Single Location Frequency In Hertz: 400.0 Single Location Unpackaged Unit Weight: 62.0 Grams Thread Series Designator: Uns Terminal Type And Quantity: 2 Tab W/Screw Frequency In Hertz: 400.0 Single Location Unpackaged Unit Weight: 62.0 Grams Thread Series Designator: Uns Terminal Type And Quantity: 2 Tab W/Screw
