Country of Origin
United States
Shipping Weight
0.05 pounds
Schedule B Code
8536.50.9065

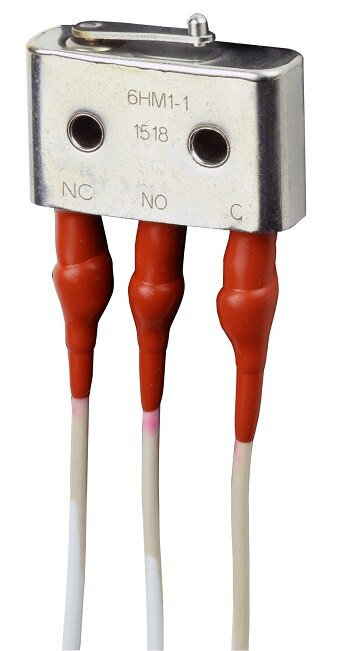

Hazardous Locations/Environmental Protection : Corrosion Resistant Overall Length : 0.789 Inches Nominal Center To Center Distance Between Mounting Facilities Parallel To Length : 0.375 Inches Nominal Overall Height : 12.360 Inches Nominal Overall Width : 0.250 Inches Nominal Body Length : 0.789 Inches Nominal Body Width : 0.250 Inches Nominal Body Height : 0.480 Inches Nominal Unthreaded Mounting Hole Diameter : 0.092 Inches Nominal Actuator Style : Leaf Actuator Free Position Height : 0.360 Inches Nominal Maximum Voltage Rating In Volts : 115.0 Ac And 28.0 Dc Inclosure Type : Hermetically Sealed Mounting Method : Unthreaded Hole Nonpile-Up Contact Arrangement : 1 Pole, Double Throw, One Position Momentary Single Switch Unit Switch Release Force : 1.0 Ounces Minimum Switch Actuating Force : 7.0 Ounces Maximum Actuator Movement : 0.030 Pretravel Inches Maximum And 0.003 Overtravel Inches Minimum And 0.006 Differential Inches Maximum Contact Load Current Rating At Maximum Rated Voltage : 4.000 Amperes Resistive Dc And 2.000 Amperes Inductive Dc And 2.500 Amperes Resistive Ac And 2.000 Amperes Inductive Ac Special Features : Approx 11.760 In. Leadwire Terminal Type And Quantity : 3 Wire Lead
