Country of Origin
United States
Shipping Weight
0.05 pounds
Manufacturer P/N

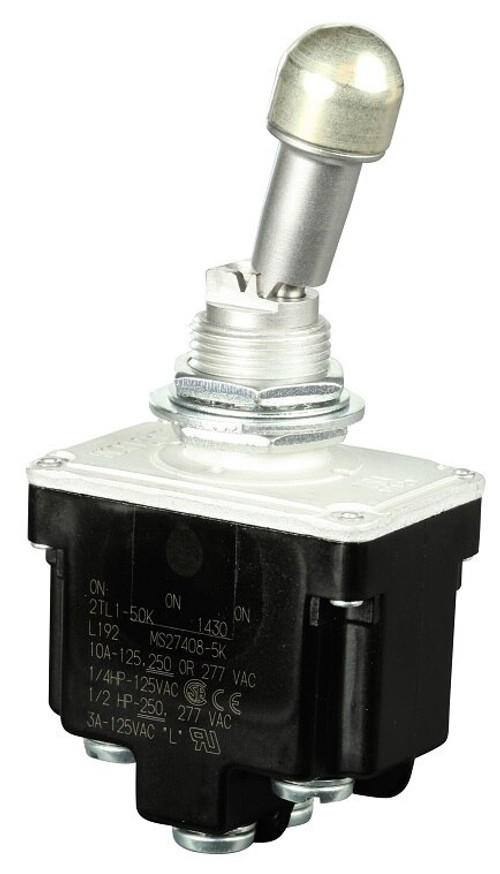

2TL1-50K
Schedule B Code
8536.50.9065
Thread Class : 2A Body Style : Bushing Mount Hazardous Locations/Environmental Protection : Dustproof Overall Length : 1.340 Inches Maximum Overall Height : 2.870 Inches Nominal Overall Width : 0.910 Inches Maximum Bushing Length : 0.470 Inches Nominal Body Length : 1.340 Inches Maximum Body Width : 0.910 Inches Maximum Body Height : 1.100 Inches Nominal Actuator Style : Round Actuator Diameter : 0.420 Inches Nominal Actuator Height : 1.050 Inches Nominal Actuator Position-Action Relationship : Up Position Maintained And Down Position Momentary And Center Position Maintained Actuator Position-Locking Relationship : Up Position Locked In And Down Position No Locking Action And Center Position Locked In Maximum Voltage Rating In Volts : 115.0 Ac And 28.0 Dc Mounting Surface To Terminal End Distance : 1.350 Inches Maximum Inclosure Type : Fully Inclosed Mounting Method : Threaded Bushing Features Provided : Actuator Seal Thread Quantity Per Inch : 32 Nominal Thread Size : 0.469 Inches Nonpile-Up Contact Arrangement : 2 Pole, Double Throw, One Position Momentary, Two Positions Maintained Single Switch Unit Contact Load Current Rating At Maximum Rated Voltage : 18.000 Amperes Resistive Dc And 10.000 Amperes Inductive Dc And 5.000 Amperes Lamp Dc And 11.000 Amperes Resistive Ac And 8.000 Amperes Inductive Ac And 2.000 Amperes Lamp Ac Thread Series Designator : Uns Terminal Type And Quantity : 6 Screw
