Country of Origin
United States
Shipping Weight
0.05 pounds
Schedule B Code
8536.50.9065

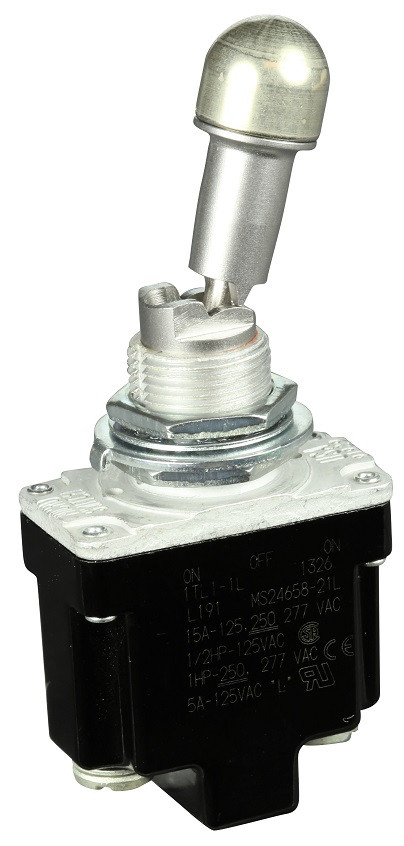

Body Style : Bushing Mount Hazardous Locations/Environmental Protection : Submersible Overall Length : 1.270 Inches Maximum Overall Height : 2.790 Inches Nominal Overall Width : 0.635 Inches Maximum Bushing Length : 0.470 Inches Nominal Body Length : 1.270 Inches Maximum Body Width : 0.635 Inches Maximum Body Height : 0.930 Inches Nominal Actuator Style : Round Actuator Diameter : 0.420 Inches Nominal Actuator Height : 1.140 Inches Nominal Actuator Position-Action Relationship : Up Position Maintained And Down Position Maintained And Center Position Maintained Actuator Position-Locking Relationship : Up Position No Locking Action And Down Position Locked Out And Center Position No Locking Action Maximum Voltage Rating In Volts : 115.0 Ac And 28.0 Dc Inclosure Type : Fully Inclosed Mounting Method : Threaded Bushing Features Provided : Actuator Seal Thread Quantity Per Inch : 32 Nominal Thread Size : 0.469 Inches Nonpile-Up Contact Arrangement : 1 Pole, Double Throw, Both Positions Maintained Single Switch Unit Contact Load Current Rating At Maximum Rated Voltage : 20.000 Amperes Resistive Dc And 15.000 Amperes Inductive Dc And 5.000 Amperes Lamp Dc And 15.000 Amperes Resistive Ac And 10.000 Amperes Inductive Ac And 3.000 Amperes Lamp Ac Precious Material And Location : Terminal Surfaces Silver Test Data Document : 81349-Mil-S-3950 Specification (Includes Engineering Type Bulletins, Brochures,Etc., That Reflect Specification Type Data In Specification Format; Excludes Commercial Catalogs, Industry Directories, And Similar Trade Publications, Reflecting General Typedata On Certain Environmental And Performance Requirements And Test Conditions That Are Shown As "Typical", "Average", "Nominal", Etc.). Thread Series Designator : Uns Terminal Type And Quantity : 3 Screw Specification/Standard Data : 96906-Ms24658 Government Standard
