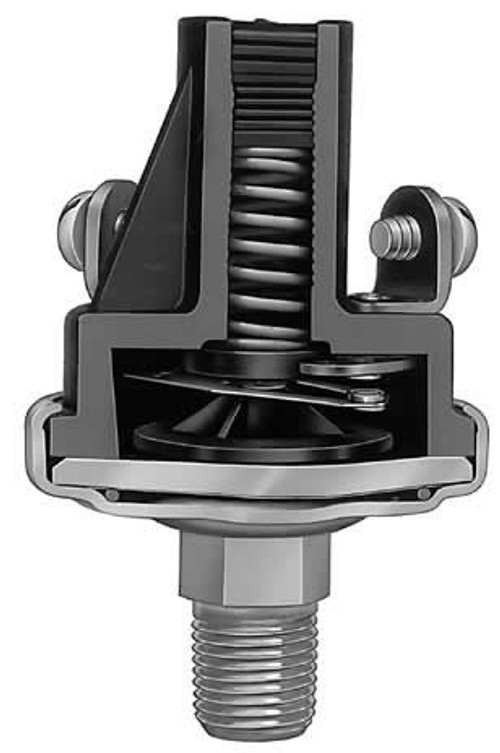

76580-10 Pressure Switch:
The 5000 Series switch is specifically designed to stand up to extended duty applications. This switch is factory set but capable of field adjustment. It features a Kapton diaphragm for compatibility with a wide variety of fluids, and various terminations including a Metri-Pack connector that forms a tight seal when connected. Among the outstanding design benefits are its durable construction, compact size, and enhanced set point integrity.
Standard 5000 Series Specifications:- Dual Circuit
- 10 psi
- Screw Terminals
The 5000 Series switch is specifically designed to stand up to extended duty applications. This switch is factory set but capable of field adjustment. It features a Kapton diaphragm for compatibility with a wide variety of fluids, and various terminations including a Metri-Pack connector that forms a tight seal when connected. Among the outstanding design benefits are its durable construction, compact size, and enhanced set point integrity.
Type - Direct action blade contact
ContacT-Shirt - Silver alloy, gold plated
Set Point - Factory set from 0.5 to 150 PSI
Operating Pressure - 150 PSI for 0.5-24 PSI set point range
Proof Pressure - 500 PSI
Burst Pressure - 750 PSI for 0.5-24 PSI set point range
Ratings:
Resistive: 15 AMP- 6 VDC
8 AMP- 12 VDC
4 AMP- 24 VDC
Inductive: 1 AMP- 120 VAC
0.5 AMP- 240 VAC
Diaphragm - Polyimide film Temperature
Range: -40° F to + 250° F
Connector - 1/8 -27 NPT male thread
Terminals - #8-32 screws
Circuitry - SPST-N.O., N.C., 2 circuits adjustable dual circuit.
Base - Plated Steel
Cover - Glass reinforced polyester
Options - Brass, plastic or stainless steel base; various base connector thread sizes; wire leads (potted & sealed).
