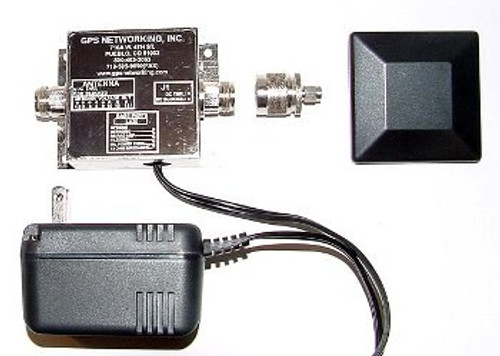

GPS Networking PNRRKIT-MC L1 Portable Re-Radiating Kit

Our Part #: SGP146284
Manufacture Part #: PNRRKIT-MC
Our Price: $475.00 (Each)
world wide icon INTERNATIONAL SHIPPING

SkyGeek welcomes international orders!

Please note: such orders are funneled into our NY warehouse and may take an extra 7-10 days to process. The benefit to this: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.

The GPS Portable Re-Radiating Kit (PNRRKIT) is a re-radiating system that allows re-radiation of the GPS L1 signal indoors. The PNRRKIT consists of a re-radiating amplifier with a wall mount plug-in transformer that powers the entire system, and a passive L1 re-radiating antenna. The GPS L1 signal from the roof antenna is amplified and radiated indoors. Thus, if a receiver has line of sight with the re-radiating antenna, it can receive the GPS signal indoors up to 100 feet away.

Product Attributes

Country of Origin
United States
Shipping Weight
2.21 pounds
ECCN
7A994
Manufacturer P/N
PNRRKIT-MC
Schedule B Code
9803.20.0000
Pack Quantity
1

Other Part Numbers

Parameter Conditions Min Typ Max Units
Freq. Range Ant - J1 1.1
1.7 GHz
In/Out Imped. Ant, J1
50
O
Gain Ant - J1, Normal Configuration 20 24.5 26 dB

Variable Gain Option -3
23 dB
Input SWR J1 - 50O

1.8:1 -
Output SWR Ant - 50O

1.8:1 -
Noise Figure Ant - J1
3.3 3.5 dB
Gain Flatness |L1 - L2|; Antenna - J1
0.5 1 dB
Reverse Isolation J1 - Ant 35

dB
Group delay Flatness td,max - td,min : Antenna - J1

1 ns

Description
