Approvals and Conformities
SAE Spec#
AMS-S-8802 Rev. C Type 2
Product Attributes
Country of Origin
United States
Size
2.5 oz
Shipping Weight
0.5 pounds
ECCN
EAR99
Manufacturer P/N
CS-3204R Class B-1/2
Schedule B Code
3506.91.0000
Pack Quantity
1
Size
2.5 (2 fl oz) Cartridge Kit
Spec
AMS-S-8802C Type 2
Class
B-1/2

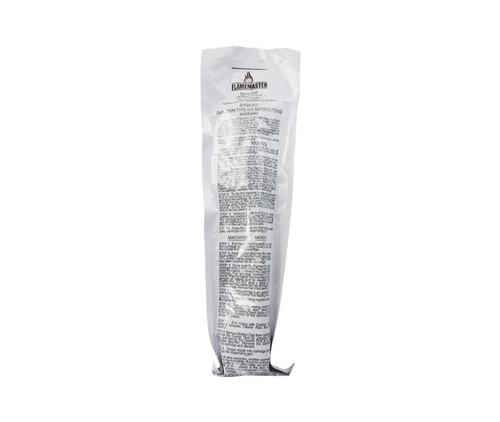

This polysulfide based fast curing fuel and temperature resistant (-650 F to 2500 F) (-540 C to 1210C) sealant is qualified to AMS-S -8802 for use on integral fuel tanks and pressurized cabins. It cures at room temperature to a flexible, resilient rubber with excellent adhesion to steel, composites, aluminum, magnesium, titanium, and numerous other materials. When mixed, CS 3204R Class B is a thixotropic paste that will not flow or sag on vertical or overhead surfaces. It can be applied with either an extrusion gun or spatula. The uncured material is easily tooled.
Base Compound Color: Off-WhiteCuring Agent Color: Black
Color of Mixed Compound: Gray
Mixing Ratio (by weight): 100:10
Mixing Ratio (by volume): 100:8.2
Non Volatile Content: 98%
Viscosity Base-Compound (Brookfield RVF Spindle #7 @ 2 RPM): 11,000 poises
Extrusion Rate (15 gms min. Req'd): 30 gms min.
Density: 1.6
Vertical Flow (slump): < 0.20
Ultimate Hardness, Shore A: 60
Air Content (4% max.): 2.4%
Application/Cure Time (AT 77°F, 50% RH):
- Application time: 2 hours
- Typical Tack-Free Time: 7 hours
- Typical Cure Time: 15 hours
- Shore A Hardness: 35
