Approvals and Conformities
SAE Spec#
AMS-S-8802 Rev. D Type 2
Product Attributes
Country of Origin
United States
Size
Quart
Shipping Weight
48 pounds
ECCN
EAR99
Color Family
Gray
Manufacturer P/N
CS-3204 Class B-1
Schedule B Code
3506.91.0000
Pack Quantity
16
Ship Dimensions
4.5 x 4.5 x 6.5 inches
Size
Quart (24 fl oz) Can Kit
Spec
AMS-S-8802D Type 2
Class
B-1
Color
Gray

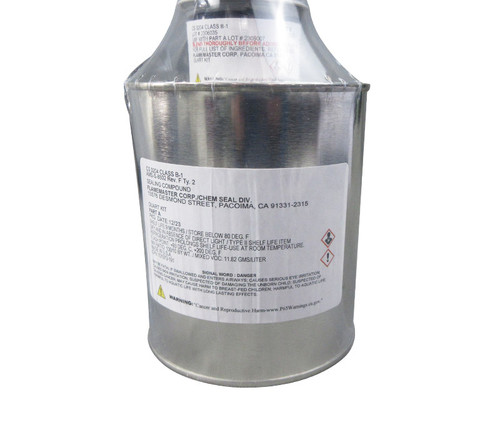

This fuel resistant sealant is for use on integral fuel tanks and pressurized cabins as well as other areas subject to contact with aircraft fuels, lubricants, oils, water and/or weathering. CS 3204 is a two-part polysulfide base compound which cures at room temperature to a flexible, resilient rubber with excellent adhesion to aluminum, magnesium, titanium, steel, and numerous other materials. CS 3204 is designed to withstand the attack of sulfur compounds that are present in jet fuels. When mixed, CS 3204 Class B is a thixotropic paste that will not flow or sag on vertical or overhead surfaces.
Base Compound Color: Off-WhiteCuring Agent Color: Gray
Color of Mixed Compound: Gray
Mixing Ratio (by weight): 100:10
Mixing Ratio (by volume): 100:8.3
Non Volatile Content: 96%
Viscosity Base-Compound (Brookfield RVF Spindle #7 @ 2 RPM): 11,000 poises
Viscosity Base-Compound (Brookfield RVF Spindle #67 @ 10 RPM): 1,000 poises
Ultimate Hardness Shore A: 50
Fungus Resistance: Non-nutrient
Corrosion Resistance: Excellent
Resistance to Hydrocarbons: (Mil-S-3136 Type III Fuel) Excellent
Resistance to Fluids: Excellent resistance to water, alcohol, petroleum and synthetic lubricating oils, and petroleum based hydraulic oils
Radiation Resistance: 3 x 10^7 Roentgens - less than 25% change in tensile strength and elongation
Note: Values obtained from AMS7124 (withdrawn). Test protocol AS5127. All values observed are typical and the user should rely on their on testing as for suitability of purpose
