Country of Origin
United States
Manufacturer P/N
CS-3201 Class A-1/2 Black
Schedule B Code
3506.91.0000
Ship Dimensions
5 x 5 x 7 inches
Size
Quart (24 fl oz) Can Kit
Spec
AMS-S-7124B (no QPL)

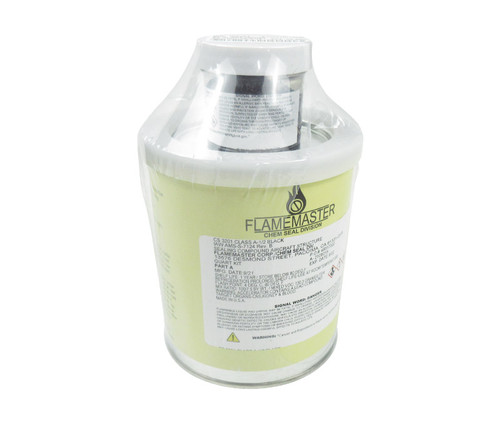

Flamemaster CS-3201 A-1/2 Black AMS-S-7124B (no QPL) Spec Integral Fuel Tank & Cabin Sealant - Quart (24 fl oz) Can Kit
Base Compound Color: Black
Curing Agent Color: Brown
Color of Mixed Compound: Black
Mixing Ratio (by weight): 100:10
Mixing Ratio (by volume): 100:7.5
Non Volatile Materal: 90%
Viscosity Base (Brookfield Spindle #5 @ 10 RPM): 200 poises
Application Time (Tack Free): 9 hrs.
Application Time (Cure 30REX): 30 hours
Specific Gravity: 1.45
Hardness Shore A: 30-45
Aluminum (bare): 30 lbs./in - 100%
Corrosion Resistance: Excellent
Resistance to Hydrocarbons: (Mil-S-3136 Type III Fuel) Excellent
Resistance to Fluids: Excellent resistance to water, alcohol, petroleum and synthetic lubricating oils, and petroleum based hydraulic oils
Radiation Resistance: 3 x 10^7 Roentgens - less than 25% change in tensile strength and elongation
Note: Values obtained from AMS7124 (withdrawn). Test protocol AS5127. All values observed are typical and the user should rely on their on testing as for suitability of purpose
