Country of Origin
United States
Shipping Weight
3.5 pounds
Manufacturer P/N
CS-3100 Type 2 Class 2
Schedule B Code
3506.91.0000
Ship Dimensions
4 x 4 x 7 inches
Size
Quart (24 fl oz) Can Kit
Spec
MIL-PRF-8516G Amend. 1

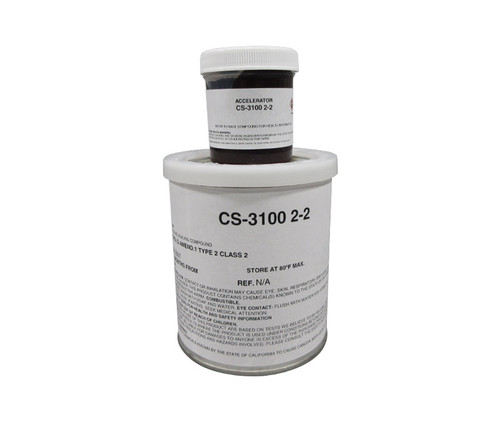

When critical components need serious protection, Flamemaster CS 3100 Type 2 Class 2 delivers. This tan aerospace potting compound is engineered to meet MIL-PRF-8516 specifications, offering reliable protection against moisture and vibrations while still insulating sensitive electrical components. Whether you're working on aircraft electronics or sensitive control modules, this 24 fl oz. kit gives you everything you need to secure and shield vulnerable systems. Once cured, the compound forms a durable, flexible seal that stands up to the harshest environmental conditions without flinching.
Ideal for electrical sealing, Flamemaster CS 3100 Potting Compound is a two-part polysulfide-based solution that offers excellent adhesion to metal and many types of plastics. It’s easy to mix, easy to pour and hard to beat when it comes to sealing off components from dust, fuel and hydraulic fluids. This chem seal compound cures to a rubber-like consistency that absorbs shock and resists cracking over time, so you won’t have any surprises later. If you need a potting solution that holds up under pressure (and altitude), Flamemaster’s got your back.
Base Compound Color: White
Curing Agent Color: Red Brown
Color of Mixed Compound: Tan
Mixing Ratio (by weight): 100/10
Non Volatile Content, Min.: 95%
Viscosity (Type II): 550 poises
Application Time: 1-3 hrs.
Hardness Shore A: 40
Adhesion Peel (lbs/in of width):
- Aluminum: 32
- Cadmium: 31
- Diallyl Phthalate: 31
- Melamine: 29
Temperature Range: -65°F to +225°F
Low Temperature Flexibility: -65°F
Fungus Resistance: Non-nutrient
Vibration Resistance: Excellent
Flame Resistance Overload: Does not ignite
Flame Application: Does not drip
Safety Data Sheet
