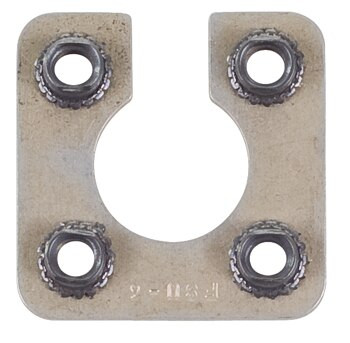

- Retainer Material: .040 +/-.003 Thick 2024-T3 Aluminum Alloy.
- Retainer Finish: Alodine per MIL-C-5541.
- Nut, Self-Locking: Steel, cadmium plated followed by a solid dryfilm lubricant. Nuts meet performance requirements of MIL-N-25027 Specification.
- Optional corrosion-resisting steel nuts, cadmium plated plus dryfilm lubricant coating available.
PART NO. | Shell Size | T THR'D UNJC-3B | A +/-.003 | B +/-.015 | C +.015/-.000 | D | E +.020 |
FSU-3 FSU-6 FSU-7 FSU-8 FSU-10 FSU-12 FSU-14 FSU-16 FSU-18 FSU-19 FSU-20 FSU-22 FSU-23 | 3 6 7 8 10 12 14 16 18 19 20 22 23 | 4.40 4.40 4.40 4.40 4.40 4.40 4.40 4.40 4.40 4.40 4.40 4.40 4.40 | .625 .469 .719 .594 .719 .812 .906 .969 1.062 .906 1.156 1.250 1.375 | .925 .755 1.019 .880 1.019 1.098 1.192 1.255 1.348 1.192 1.500 1.593 1.750 | .641 .366 .688 .554 .688 .828 .953 1.094 1.185 .953 1.305 1.428 1.560 | .106/.166 .106/.166 .106/.166 .106/.166 .106/.166 .106/.166 .106/.166 .106/.166 .106/.166 .106/.166 .106/.166 .106/.166 .106/.166 | .325 .183 .433 .308 .433 .526 .620 .683 .776 .620 .865 .907 1.000 |
PART NO. | Shell Size | T THR'D UNJC-3B | A +/-.003 | B +/-.015 | C +.015/-.000 | D
| E +.020 |
FSU-24 FSU-25 FSU-27 FSU-28 FSU-32 FSU-36 FSU-37 FSU-40 FSU-48 FSU-61 | 24 25 27 28 32 36 37 40 48 61 | 6.32 6.32 4.40 6.32 6.32 6.32 4.40 8.32 10.32 4.40 | 1.375 1.500 .969 1.562 1.750 1.938 1.187 2.188 2.625 1.437 | 1.750 1.812 1.255 2.000 2.312 2.500 1.500 2.925 3.250 1.812 | 1.560 1.582 1.094 1.820 2.062 2.312 1.281 2.675 2.950 1.594 | .123/.183 .123/.183 .106/.166 .123/.183 .123/.183 .123/.183 .106/.166 .128/.210 .140/.180 .106/.166 | 1.000 1.062 .683 1.125 1.188 1.375 .874 1.500 1.975 1.062 |

Approvals and Conformities
Product Attributes

- Retainer Material: .040 +/-.003 Thick 2024-T3 Aluminum Alloy.
- Retainer Finish: Alodine per MIL-C-5541.
- Nut, Self-Locking: Steel, cadmium plated followed by a solid dryfilm lubricant. Nuts meet performance requirements of MIL-N-25027 Specification.
- Optional corrosion-resisting steel nuts, cadmium plated plus dryfilm lubricant coating available.
PART NO. | Shell Size | T THR'D UNJC-3B | A +/-.003 | B +/-.015 | C +.015/-.000 | D | E +.020 |
FSU-3 FSU-6 FSU-7 FSU-8 FSU-10 FSU-12 FSU-14 FSU-16 FSU-18 FSU-19 FSU-20 FSU-22 FSU-23 | 3 6 7 8 10 12 14 16 18 19 20 22 23 | 4.40 4.40 4.40 4.40 4.40 4.40 4.40 4.40 4.40 4.40 4.40 4.40 4.40 | .625 .469 .719 .594 .719 .812 .906 .969 1.062 .906 1.156 1.250 1.375 | .925 .755 1.019 .880 1.019 1.098 1.192 1.255 1.348 1.192 1.500 1.593 1.750 | .641 .366 .688 .554 .688 .828 .953 1.094 1.185 .953 1.305 1.428 1.560 | .106/.166 .106/.166 .106/.166 .106/.166 .106/.166 .106/.166 .106/.166 .106/.166 .106/.166 .106/.166 .106/.166 .106/.166 .106/.166 | .325 .183 .433 .308 .433 .526 .620 .683 .776 .620 .865 .907 1.000 |
PART NO. | Shell Size | T THR'D UNJC-3B | A +/-.003 | B +/-.015 | C +.015/-.000 | D
| E +.020 |
FSU-24 FSU-25 FSU-27 FSU-28 FSU-32 FSU-36 FSU-37 FSU-40 FSU-48 FSU-61 | 24 25 27 28 32 36 37 40 48 61 | 6.32 6.32 4.40 6.32 6.32 6.32 4.40 8.32 10.32 4.40 | 1.375 1.500 .969 1.562 1.750 1.938 1.187 2.188 2.625 1.437 | 1.750 1.812 1.255 2.000 2.312 2.500 1.500 2.925 3.250 1.812 | 1.560 1.582 1.094 1.820 2.062 2.312 1.281 2.675 2.950 1.594 | .123/.183 .123/.183 .106/.166 .123/.183 .123/.183 .123/.183 .106/.166 .128/.210 .140/.180 .106/.166 | 1.000 1.062 .683 1.125 1.188 1.375 .874 1.500 1.975 1.062 |
