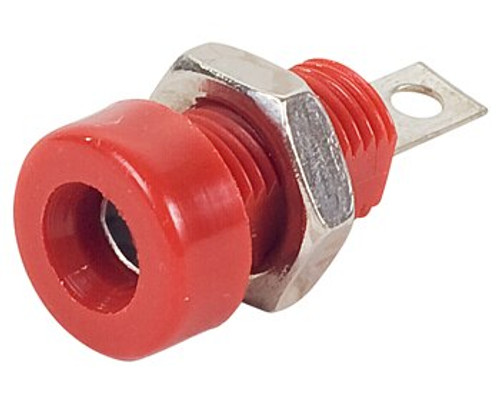

Cinch Connectors 108-0902-001 Red Banana Jack, Tip

Our Part #: SGP12618
Manufacture Part #: 108-0902-001
Our Price: $0.91 (Each)

Bulk Shop & Save

  • 25 - 49 $0.89 Each
  • 50 - 74 $0.86 Each
  • 75 - 99 $0.83 Each
  • 100 + $0.80 Each
world wide icon INTERNATIONAL SHIPPING

SkyGeek welcomes international orders!

Please note: such orders are funneled into our NY warehouse and may take an extra 7-10 days to process. The benefit to this: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.

Cinch Connectors 108-0902-001 Red Banana Jack, Tip

Approvals/References/Specification

  • Automated Quality Technologies Specification:1704-000-0104
  • Boeing Specification:BACJ11AB-02
  • Boeing Specification:BACJ11AB1-02
  • Boeing Specification:BACJ11AB1+02
  • Boeing Specification:000-8002-756
  • Boeing Specification:414-1586-002
  • Boeing Specification:414-1586-008
  • Boeing Specification:414-3021-014
  • Fluke Specification:162065
  • Honeywell International Specification:2503406-2
  • Honeywell International Specification:D910121-2
  • Honeywell International Specification:95852-2
  • Honeywell International Specification:6411305-31
  • Hughes Missile Systems Specification:7684-60002-002
  • Interstate Electronics Specification:377-001-031
  • Johnson Electric Specification:108-0902-001
  • Litton Systems Specification:910773-8902
  • Northrop Grumman Systems Specification:910773-8902
  • Northrop Grumman Systems Specification:990C771H02
  • Pace Specification:1207-0042
  • Palomar Products Specification:08-009
  • Raytheon Specification:185776-1
  • Rockwell Collins Specification:360-0240-000
  • Systron-Donner Specification:101151
  • USA Aviation and Missile Specification:P39024-015-01
  • Viking Technologies Specification:0902-001
  • Viking Technologies Specification:108-0902-001
  • Viking Technologies Specification:108-0902-001
  • Viking Technologies Specification:108-902
  • Viking Technologies Specification:108-902-001
  • Viking Technologies Specification:108-902-001
  • Viking Technologies Specification:108-902-1
  • Viking Technologies Specification:108-902RED
  • Viking Technologies Specification:108902
  • Wheatland Tube Specification:108-902
  • Wheelabrator Engineered Systems Specification:108-902
  • Product Attributes

    Country of Origin
    United States
    Shipping Weight
    0.001 pounds
    ECCN
    EAR99
    UOM
    Each
    Color Family
    Red
    Manufacturer P/N
    108-0902-001
    Schedule B Code
    8548.90.0100
    Pack Quantity
    1
    NSN
    5935-00-803-1445
    Color
    Red

    Other Part Numbers

    Boeing PN/Spec#
    BACJ11AB-02 BACJ11AB1-02
    Alternate PN#s
    108-0902-001
  • Thread Class : 2A
  • Thread Direction : Right-Hand
  • Electrical Insulation Feature : Insulated Completely
  • Identification Code Color : Red
  • Body Style : Threaded Bushing Mounted
  • Overall Length : 0.938 Inches Nominal
  • Mounting Bushing Length : 0.469 Inches Nominal
  • Body Length : 0.657 Inches Nominal
  • Overall Diameter : 0.438 Inches Nominal
  • Bushing Accommodation Hole Shape : Round
  • Maximum Voltage Rating In Volts : 10000.0 Dc
  • Iii Accommodated Finger Type : Banana Spring Single Finger
  • Finger Accommodation Diameter : 0.175 Inches Nominal Single Finger
  • Finger Accommodation Length : 0.657 Inches Nominal Single Finger
  • Bushing Thru-Hole Accommodation Diameter : 0.328 Inches Nominal
  • Capacitance In Picofarads : 2.4
  • Iii End Item Identification : Aircraft, (Ac-130H, Mc-130H, Ec-130E, Hc-130); Missile, All-Weather
  • Mounting Facility Type And Quantity : 1 Bushing
  • Thread Quantity Per Inch : 32
  • Nominal Thread Size : 0.312 Inches
  • Criticality Code Justification : Feat
  • Terminal Type : Tab, Solder Lug
  • Special Features : Weapon System Essential
  • Material : Plastic Polyamide Insulator
  • Material : Plastic Polyamide Cap
  • Material : Copper Alloy Spring
  • Material : Copper Alloy Terminal
  • Material : Copper Alloy Bushing
  • Material : Copper Alloy Body
  • Surface Treatment : Nickel Terminal
  • Surface Treatment : Nickel Spring
  • Thread Series Designator : UNEF
