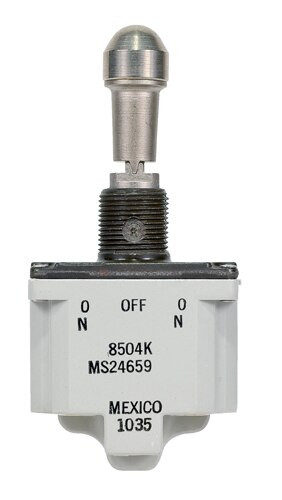

2 pole toggle switch; On - None † Off

Molded-in terminal inserts and terminal numbers
Environmentally sealed per MIL-S-3950
MS approved and QPL'd per MIL-S-3950
Thermoset molding materials meet flame retardant requirements
Bushing: 15/32" - 32 thread
Temperature Range: -85°F to +160°F (-65°C to +71°C)
Life: 20,000 operations at rated load 40,000 operations mechanical life

Actuator Type:
Lever

Contact Form:
SPST

Lamp load:
@ 28VDC 5 amp DC
@ 115VAC 3 amp AC

Resistve load:
@ 28VDC 20 amp DC
@ 115VAC 15 amp AC

Inductive load:
@ 28VDC 15 amp DC
@ 115VAC 10 amp AC

Mounting Hole Size:
0.48 "

Mounting Type:
Panel

Number of Poles:
2

Standards:
UL Recognized, CaseA Certified

Temperature, Operating, Maximum:
71 °C

Temperature, Operating, Minimum:
-65 °C

Termination:
Screw

Type:
Toggle

Voltage, Rating:
115/28 VAC/VDC

Product Attributes

Country of Origin

United States

Shipping Weight

0.1 pounds

Manufacturer P/N

8504K9

Pack Quantity
