Approvals and Conformities
Product Attributes
Country of Origin
Mexico
Shipping Weight
0.1 pounds
ECCN
9A991.d
Manufacturer P/N
8503K9
Schedule B Code
8536.50.9065
Pack Quantity
1

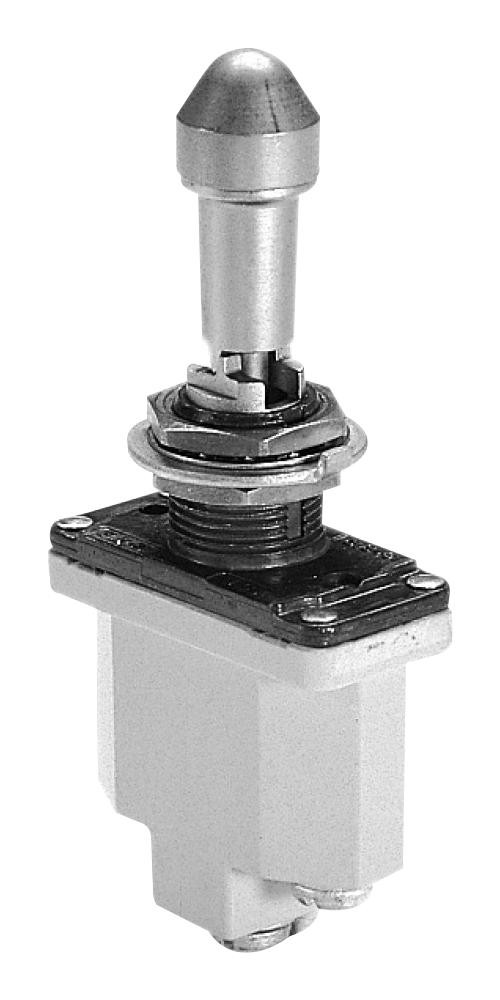

1 pole toggle switch; On - None - Off
Actuator Type:- Molded-in terminal inserts and terminal numbers
- Environmentally sealed per MIL-S-3950
- MS approved and QPL'd per MIL-S-3950
- Thermoset molding materials meet flame retardant requirements
- Bushing: 15/32" - 32 thread
- Temperature Range: -85°F to +160°F (-65°C to +71°C)
- Life: 20,000 operations at rated load 40,000 operations mechanical life
Lever
Contact Form:
SPST
Lamp load:
@ 28VDC 5 amp DC
@ 115VAC 3 amp AC
Resistve load:
@ 28VDC 20 amp DC
@ 115VAC 15 amp AC
Inductive load:
@ 28VDC 15 amp DC
@ 115VAC 10 amp AC
Mounting Hole Size:
0.48 "
Mounting Type:
Panel
Number of Poles:
1
Standards:
UL Recognized, CaseA Certified
Temperature, Operating, Maximum:
71 °C
Temperature, Operating, Minimum:
-65 °C
Termination:
Screw
Type:
Toggle
Voltage, Rating:
115/28 VAC/VDC
