Country of Origin
Mexico
Shipping Weight
0.15 pounds
Schedule B Code
8536.50.9065

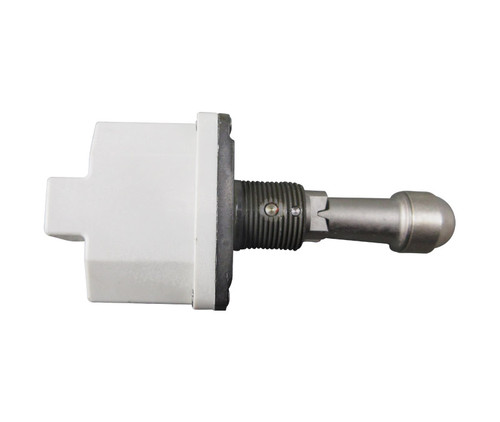

Body Style: Bushing Mount Hazardous Locations/Environmental Protection: Submersible Overall Length: 1.346 Inches Maximum Overall Height: 2.769 Inches Nominal Overall Width: 1.025 Inches Maximum Bushing Length: 0.437 Inches Nominal Body Length: 1.346 Inches Maximum Body Width: 0.861 Inches Maximum Actuator Style: Round Actuator Diameter: 0.430 Inches Maximum Actuator Height: 1.082 Inches Nominal Actuator Position-Action Relationship: Up Position Momentary And Down Position Momentary And Center Position Maintained Actuator Position-Locking Relationship: Up Position No Locking Action And Down Position No Locking Action And Center Position Locked In Maximum Voltage Rating In Volts: 115.0 Ac And 28.0 Dc Mounting Surface To Terminal End Distance: 1.250 Inches Maximum Inclosure Type: Fully Inclosed Features Provided: Actuator Seal Thread Quantity Per Inch: 32 Nominal Thread Size: 0.469 Inches Nonpile-Up Contact Arrangement: 2 Pole, Double Throw, Two Positions Momentary Single Switch Unit Contact Load Current Rating At Maximum Rated Voltage: 18.000 Amperes Resistive Dc And 10.000 Amperes Inductive Dc And 5.000 Amperes Lamp Dc And 11.000 Amperes Resistive Ac And 8.000 Amperes Inductive Ac And 2.000 Amperes Lamp Ac Test Data Document: 81349-Mil-Dtl-83731 Specification (Includes Engineering Type Bulletins, Brochures,Etc., That Reflect Specification Type Data In Specification Format; Excludes Commercial Catalogs, Industry Directories, And Similar Trade Publications, Reflecting Generaltype Data On Certain Environmental And Performance Requirements And Test Conditions That Are Shown As "Typical", "Average", "Nominal", Etc.). Thread Series Designator: Uns Terminal Type And Quantity: 6 Tab W/Screw Specification/Standard Data: 96906-Ms25126 Government Standard
Actuator Type:
Lever
Contact Form:
SPST
Lamp load:
@ 28VDC 5 amp DC
@ 115VAC 3 amp AC
Resistve load:
@ 28VDC 20 amp DC
@ 115VAC 15 amp AC
Inductive load:
@ 28VDC 15 amp DC
@ 115VAC 10 amp AC
Mounting Hole Size:
0.48 "
Mounting Type:
Panel
Number of Poles:
1
Standards:
UL Recognized, CaseA Certified
Temperature, Operating, Maximum:
71 °C
Temperature, Operating, Minimum:
-65 °C
Termination:
Screw
Type:
Toggle
Voltage, Rating:
115/28 VAC/VDC
