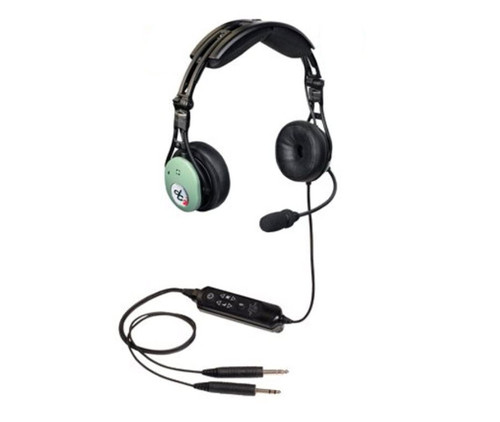

David Clark 43105G-01 Model DC PRO-X2 Bluetooth® Hybrid ENC Stereo/Mono 7' Straight Cord Standard Dual Plugs Aircraft Headset

Features

Hybrid Electronic Noise Cancellation: Provides bestin-class active noise cancellation

Bluetooth® Wireless Technology: Seamless integration for connection to cell phones, MP3, tablets or other personal devices

Fail-Safe Operation: Ensures full communication in the event of battery loss or system failure

Digital Signal Processing(DSP): Technology Provides high fidelity audio for superior communications and music listening

Audio Mute: Reduces auxiliary audio volume and prevents missed communications

Enhanced Auto Shut-off: Prevents accidental loss of battery power

Stereo/Mono Selection: Compatible with all aircraft audio panel configurations

Five-Year Warranty: Backed by industry leading customer service

FAA TSO approval: C-139a

Ear coupling: On-the-ear

Hardware: Lightweight Alloy

Connector Type: Standard dual plugs

Connection Cable: 0.155” (4-mm) OD shielded cable, length ~ 6.9 ft. (2.1 m Weight w/o cable ~ 7.5 oz. (215 g)

Battery life: Up to 50 hours (2 AA batteries)

Operating temperature: -20°C to +55°C

Operating voltage: 3VDC (2x AA)

Dome type: ABS

Characteristic SPL: ~91 dB SPL (1 kHz, 1 mW)maximum volume nominal

Contact pressure: ~0.6 lb. (2.7 N)

ENC peak attenuation: 30dB @ 150Hz

ENC attenuation range: 20Hz - 1KHz

Total harmonic distortion(THD): < 1% - 110 dB SPL (300 - 3,000 Hz)

Transducer principle: Dynamic

Ear Impedance: 600Ω mono / 1200Ω stereo (each ear)

Ear Freq Response: 12 - 15,000 Hz

Microphone principle: pre-polarized condenser microphone (electret), noise-cancelling

Mic Impedance: 150Ω nominal

Mic Sensitivity: 400mV+/-6dB into 150ω load @ 1kHz for 114 dB SPL input

Mic Freq Response: 150 - 8,000 Hz

Mic DC Supply V.: 8-16V, not polarity sensitive

Source Resistance: 470Ω

Downloads

Safety Data Sheet

Product Attributes

Country of Origin

United States

Shipping Weight

3 pounds

ECCN

7A994

Color Family

Green

Manufacturer P/N

DC PRO-X2

Schedule B Code

8518.90.3000

Pack Quantity

Color

Green

Approvals and Conformities
