Approvals and Conformities
Alternate PN#s
CI-2680-216
Product Attributes
Country of Origin
United States
Shipping Weight
1.5 pounds
ECCN
7A994
Manufacturer P/N
CI-2680216
Schedule B Code
9803.20.0000
Pack Quantity
1

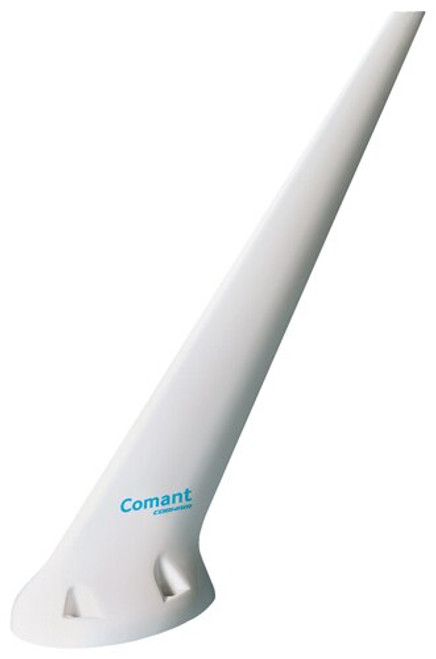

Comant's multifunction VHF/XM high speed blade antenna for twins and light jet aircraft. Exact match of common teardrop footprint. Perfect to add XM weather data to a stand-alone VHF mounted antenna.
Our patented VHF harmonic suppression also protects co-located stand-alone GPS antennas, allowing for more antennas in less total area.
Frequency
118-137 MHz
VSWR
2.9:1 Maximum
Polarization
Vertical
Radiation Pattern
Omnidirectional
Impedence
50 Ohms
Power Rating
50 Ohms
XM Weather Data Specification
Frequency
2332.5-2345.0 MHz
VSWR
2.0:1 Maximum
Polarization
LHCP
Radiation Pattern
Hemispherical
Impedance
50 Ohms
Gain
30-34 dB
DC Voltage
4.75-24 Volts
DC Current Min/Max
45mA Typical / 55 mA Max.
Mechanical / Environmental
Weight
1.25 lbs
RTCA Env. / TSO
DO 160D, C 37d, C 38d
Connector
VHF - BNC / XM - SMA
