Product Attributes
Country of Origin
United States
Shipping Weight
1 pounds
ECCN
7A994
Manufacturer P/N
CI-120-1
Schedule B Code
9803.20.0000
Pack Quantity
1

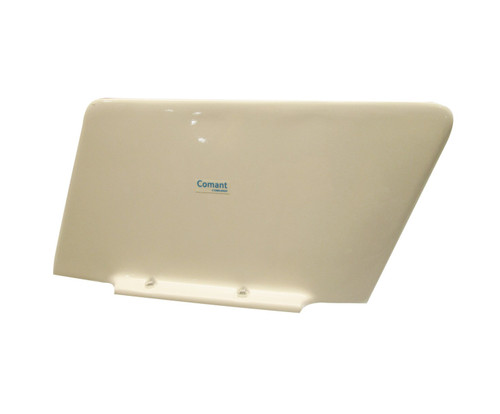

VOR/GS navigation antenna set provides optimum VOR performance when used for area navigation. Antenna system qualified for use on single, twin, jet and helicopter aircraft. Also provides glide slope reception capability. With single BNC connector output, two coax interconnect cables and a signal combiner with single BNC connector output providing for a single cable run to the avionics installation.
| Electrical | |
| Frequency | 108 - 118 MHz (VOR / LOC) |
| 329 - 335 MHz (Glide Slope) | |
| VSWR | 6.0:1 108 - 118 MHz (VOR/LOC) |
| 5.0:1 329 - 335 MHz (Glide Slope) | |
| Polarization | Horizontal |
| Radiation Pattern | Omnidirectional |
| Impedance | 50 Ohms Nominal |
| Power | Receive only |
| Mechanical | |
| Weight | 1.4 lb. |
| Height | 6.0 in. Maximum |
| Material | Molded Radome |
| Finish | Polyurethane Enamel |
| Connector | BNC / Single output combiner |
| Environmental | |
| Temperature | -55ºC to +85ºC |
| Altitude | 50,000 ft. |
| Air Speed | 600 Knots TAS @ 25,000 ft. |
| Federal Specifications | |
| RTCA Environmental | DO-160D |
| Environmental Category | [(F2)X]ACE[(T)E1P]XRXXXSXXXXXXXXXCX |
| FAA TSO | C34e, C36e, C40c |
| RTCA MOPS | DO-192, DO-195, DO-196 |
