Product Attributes
Country of Origin
United States
Shipping Weight
3 pounds
ECCN
7A994
Manufacturer P/N
CI-108-L
Schedule B Code
9803.20.0000
Pack Quantity
1

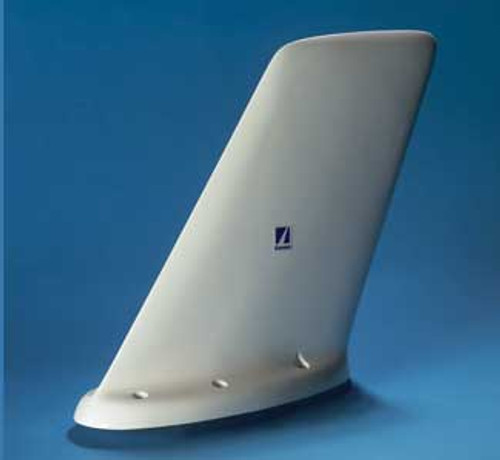

Designed for high-performance aircraft applications.
Suitable for either top or bottom mounting.
Solid Polyurethane construction for strength, reliability and durability.
White Polyurethane finish is Skydrol and rain erosion resistant.
The 108 Series has been re-tested and upgraded to the RTCA DO-160D environmental requirements and offers the 118 to 137 MHz frequency associated with DO-186A MOPS.
Optional leading edge protection available with the CI-108-L.
*Note:* The CI-108-L is only available in quantities of 25, the CI-108 (see link below) is equivalent without the leading edge protection
Suitable for either top or bottom mounting.
Solid Polyurethane construction for strength, reliability and durability.
White Polyurethane finish is Skydrol and rain erosion resistant.
The 108 Series has been re-tested and upgraded to the RTCA DO-160D environmental requirements and offers the 118 to 137 MHz frequency associated with DO-186A MOPS.
Optional leading edge protection available with the CI-108-L.
*Note:* The CI-108-L is only available in quantities of 25, the CI-108 (see link below) is equivalent without the leading edge protection
| Electrical | |
| Frequency | 118 - 137 MHz |
| VSWR | 2.5:1 |
| Polarization | Vertical |
| Radiation Pattern | Omnidirectional |
| Impedance | 50 Ohms |
| Power | 25 Watts |
| Mechanical | |
| Weight | 2.5 lb. Maximum |
| Height | 12.0 in. Maximum |
| Material | High Density Polyurethane |
| Finish | White Polyurethane Enamel |
| Connector | BNC (female) |
| Gasket | C10810 Cork Neoprene |
| Environmental | |
| Temperature | -55°C to +85°C |
| Altitude | 50,000 ft. |
| Air Speed | 600 Knots TAS @ 35,000 ft. |
| Federal Specifications | |
| RTCA Environmental | DO-160D |
| Environmental Category | [D2X]ACB[R(C,C1)U(F,F1)] XWFDXSXXXXX[XX]X[XXXX]XAX |
| FAA TSO | C37d, C38d |
| RTCA MOPS | DO-186A |
