Product Attributes
Country of Origin
United States
Shipping Weight
3.51 pounds
ECCN
7A994
Color Family
White
Manufacturer P/N
CI-108-1-L
Schedule B Code
9803.20.0000
Pack Quantity
1
Color
White

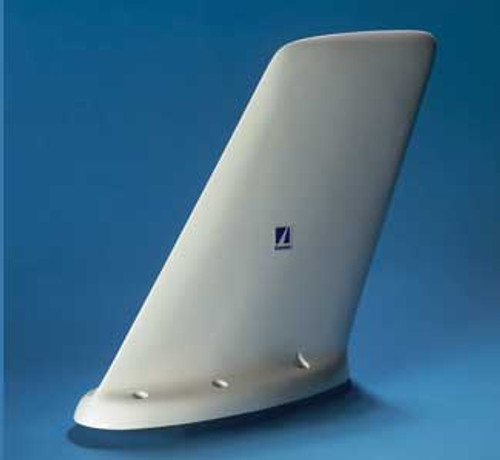

Designed for world-wide service where VHF communication is available over a wider band.
Suitable for either top or bottom mounting.
Solid Polyurethane construction for strength, reliability and durability.
White Polyurethane finish is Skydrol and rain erosion resistant.
The 108 Series has been re-tested and upgraded to the RTCA DO-160D environmental requirements.
Optional leading edge protection available with the CI-108-1-L.
*Note* - The CI-108-1-L are only available in quantities of 25, the CI-108-1 is the equivalent antenna without leading edge protection.
Suitable for either top or bottom mounting.
Solid Polyurethane construction for strength, reliability and durability.
White Polyurethane finish is Skydrol and rain erosion resistant.
The 108 Series has been re-tested and upgraded to the RTCA DO-160D environmental requirements.
Optional leading edge protection available with the CI-108-1-L.
*Note* - The CI-108-1-L are only available in quantities of 25, the CI-108-1 is the equivalent antenna without leading edge protection.
| Electrical | |
| Frequency | 118 - 153 MHz |
| VSWR | 2.5:1 |
| Polarization | Vertical |
| Radiation Pattern | Omnidirectional |
| Impedance | 50 Ohms |
| Power | 25 Watts |
| Mechanical | |
| Weight | 2.5 lbs. Maximum |
| Height | 12.0 in. Maximum |
| Material | High Density Polyurethane |
| Finish | White Polyurethane Enamel |
| Connector | BNC (female) |
| Gasket | C10810 Cork Neoprene |
| Environmental | |
| Temperature | -55°C to +85°C |
| Altitude | 50,000 ft. |
| Air Speed | 600 Knots TAS @ 35,000 ft. |
| Federal Specifications | |
| RTCA Environmental | DO-160D |
| Environmental Category | [D2X]ACB[R(C,C1)U(F,F1)] XWFDXSXXXXX[XX]X[XXXX]XAX |
| FAA TSO | C37d, C38d |
| RTCA MOPS | DO-186A |
