Product Attributes
Country of Origin
United States
Shipping Weight
2 pounds
ECCN
7A994
Manufacturer P/N
CI 2480-216
Schedule B Code
9803.20.0000
Pack Quantity
1

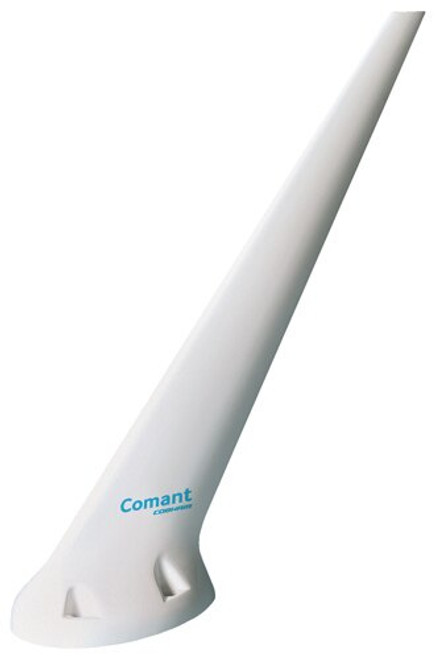

The CI 2480-216 is the first ComDat to provide VHF and XM Weather Data in a single, combined antenna. Patented design offers XM approved performance for poular WX systems from Garmin and Avidyne.
Built-in 80 dB low pass filter protects both GPS and XM antennas against unwanted VHF interference. Helicopter rated, this model has been tested under the toughest RTCA DO-160D environmental conditions.
VHF Characteristics
Built-in 80 dB low pass filter protects both GPS and XM antennas against unwanted VHF interference. Helicopter rated, this model has been tested under the toughest RTCA DO-160D environmental conditions.
- Frequency : 118-137 MHz
- VSWR : 2.5:1 Maximum
- Polarization : Vertical
- Radiation Pattern : Omnidirectional
- Impedence : 50 Ohms
- Power Rating : 50 Ohms
- VSWR : 1.5:1 Maximum
- Polarization : LHCP
- Radiation Pattern : Hemispherical
- Impedance : 50 Ohms
- Gain : 30-34 dB
- DC Voltage : 4-24 Volts
- DC Current Min/Max : 25mA Min. / 55 mA Max.
- Weight : 0.7 lbs
- RTCA Env. / TSO : DO 160D, C 37d, C 38d
- Connector : VHF - BNC / XM - TNC
