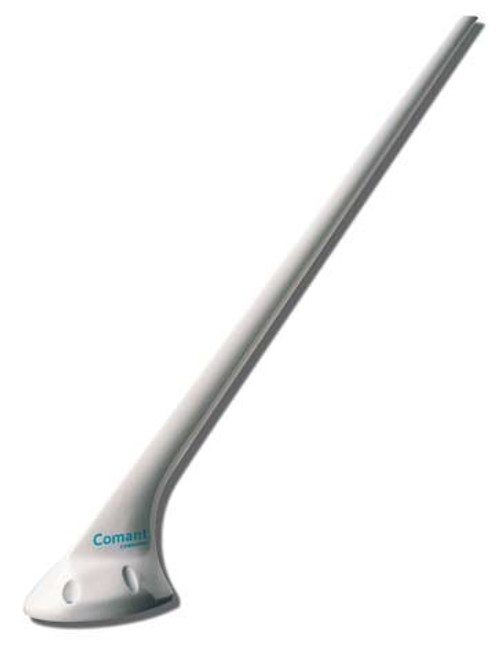

Cobham Comant CI-2480-200 ComDat GPS/VHF Combo Antenna - 26.5db

Cobham Comant CI-2480-200 ComDat GPS/VHF Combo Antenna - 26.5db
Cobham Comant CI-2480-200 ComDat GPS/VHF Combo Antenna - 26.5db
Our Part #: SGP104321
Manufacture Part #: CI-2480-200
Our Price: $931.60
Price Per Each

world wide icon INTERNATIONAL SHIPPING

SkyGeek welcomes international orders!

Please note: such orders are funneled into our NY warehouse and may take an extra 7-10 days to process. The benefit to this: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.

Related Items

Product Added to Cart Successfully

Approvals and Conformities

Approvals and Conformities

Product Attributes

Country of Origin
United States
Shipping Weight
2 pounds
ECCN
7A994
Manufacturer P/N
CI 2480-200
Schedule B Code
9803.20.0000
Pack Quantity
1
Ship Dimensions
25 x 3.5 x 3 inches

All new design shares the popular CI 248 style. Combines both GPS and VHF Com functions in a single footprint. Same 4-hole mounting dimensions as popular VHF antennas. Provides separate connections - TNC for GPS and BNC for communication. Features a built-in notch filter for excellent performance in a single package, and a GPS amplifier designed specifically for Bendix-King GPS receivers.

This patented design is perfect for helicopter applications, and has been tested under the toughest RTCA DO-160D environmental conditions.

VHF Specifications
  • Frequency : 118-137 MHz
  • VSWR : 2.5:1 Maximum
  • Polarization : Vertical
  • Radiation Pattern : Omni Directional
  • Impedence : 50 Ohms
  • Power Rating : 50 Watts
GPS Preamplifier Specs
  • Frequency : 1575.42 +/-3 MHz
  • VSWR : 2.0:1 Max.
  • Polarization : RHCP
  • Radiation Pattern : Hemispherical
  • Impedance : 50 Ohms
  • Gain : 26.5 dB
  • DC Voltage : +5 Vdc
  • DC Curr. Min/Max : 50 mA Maximum
  • Noise : 3.8 dB Max
Mechanical / Environmental
  • Weight : 0.6 lb Maximum
  • RTCA Env. / TSO : DO 160D / C37d, C38d, C144
  • Connectors : VHF - BNC / GPS - TNC
