Product Attributes
Country of Origin
United States
Shipping Weight
3.4 pounds
ECCN
7A994
Manufacturer P/N
CI259E
Schedule B Code
9803.20.0000
Pack Quantity
1

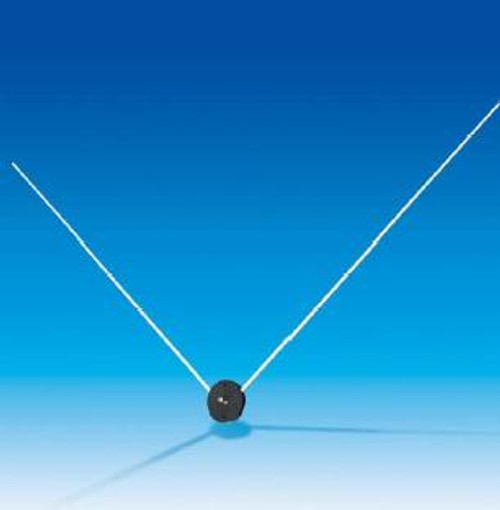

"V" Dipole VOR/Glide Slope Antenna with Fixed Elements is approved for use on helicopter aircraft. Features an integral ferrite balun and fixed element construction. Mechanically designed to withstand the severe low frequency vibration environment experienced in typical helicopter installations. APPROVED for use on helicopter aircraft.
| MODEL CI 259E V-Dipole | |
| Electrical | |
| Frequency | 108 - 118 MHz (VOR / LOC) 329 - 335 MHz (Glide Slope) |
| VSWR | 3.0:1 108 - 118 MHz (VOR/LOC) 3.0:1 329 - 335 MHz (Glide Slope) |
| Polarization | Horizontal |
| Radiation Pattern | Dipole |
| Impedance | 50 Ohms Nominal |
| Power | Receive Only |
| Mechanical | |
| Weight | 0.35 lb. Maximum |
| Height | 16.00 in. Maximum |
| Material | Delrin housing / Glass laminate whips / SS raditors |
| Finish | Black housing / Polyurethane enamel |
| Connector | BNC |
| Environmental | |
| Temperature | -55ºC to +85ºC |
| Altitude | 50,000 ft. |
| Air Speed | 250 Knots TAS @ 25,000 ft. |
| Federal Specifications | |
| RTCA Environmental | DO-160 |
| Environmental Category | D2A/UV/XXXXXXXX |
| FAA TSO | C34c, C36c, C40a |
| RTCA MOPS | DO-192, DO-195, DO-196 |
| ORDER OPTIONS | |
| Connector | |
| BNC | Standard |
| Color | |
| White | Radiators only |
