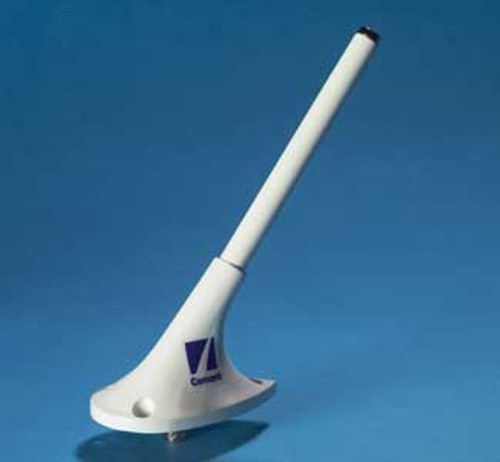

Rugged monopole antenna particularly well-suited to the harsh environments experienced on the underside of an aircraft. Features a very compact 3-hole mounted die-cast aluminum base with the radiator encased in a glass laminate housing.
| MODEL CI 200 UHF Antenna | |
| Electrical | |
| Frequency | 450 - 470 MHz |
| VSWR | 1.5:1 Maximum |
| Polarization | Vertical |
| Radiation Pattern | Omnidirectional |
| Impedance | 50 Ohms |
| Power | 30 Watts |
| Mechanical | |
| Weight | 0.5 lbs. Maximum |
| Height | 6 1/8 in. Maximum |
| Material | Aluminum alloy housing / Fiberglass whip |
| Finish | Polyurethane Enamel |
| Connector | BNC (female) |
| Environmental | |
| Air Speed | 450 Knots TAS @ 25,000 ft. |
| ORDER OPTIONS | |
| Connector | |
| BNC | Standard |
| Color | |
| White | Standard |
