Approvals and Conformities
Product Attributes
Country of Origin
United States
Shipping Weight
0.93 pounds
ECCN
7A994
Manufacturer P/N
CI177-3
Schedule B Code
9803.20.0000
Pack Quantity
1

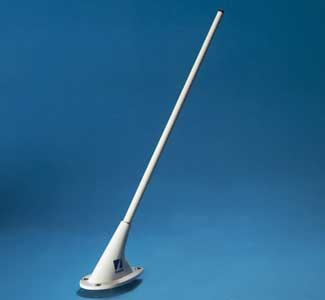

Designed for use over the public service FM frequency band. Features the popular standard 3-hole mounting with the radiating element enclosed in a high strength tapered glass laminate housing.
| MODEL CI 177-3 FM/2 Meter Antenna | |
| Electrical | |
| Frequency | 148 - 174 MHz |
| VSWR | 2.5:1 Maximum |
| Polarization | Vertical |
| Radiation Pattern | Omnidirectional |
| Impedance | 50 Ohms |
| Power | 50 Watts |
| Mechanical | |
| Weight | 0.5 lbs. Maximum |
| Height | 14.50 in. Maximum |
| Material | Die Cast housing / Fiberglass Whip |
| Finish | Polyurethane Enamel |
| Connector | BNC (female) |
| Environmental | |
| Temperature | -55ºC to +55ºC |
| Altitude | 30,000 ft. |
| Air Speed | 450 Knots at 25,000 ft. |
| Federal Specifications | |
| RTCA | DO 138 |
| FAA TSO | C37b, Class1, C38b |
| Environmental Category | BAJXXXXXXXXXXX |
| ORDER OPTIONS | |
| Connector | |
| BNC | Standard |
| Color | |
| White | Standard |
| Gasket | |
| C29205 | |
