Product Attributes
Country of Origin
United States
Shipping Weight
1 pounds
ECCN
7A994
Manufacturer P/N
CI175
Schedule B Code
9803.20.0000
Pack Quantity
1

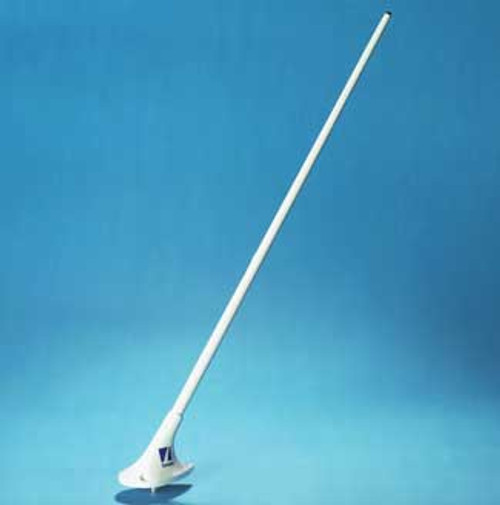

High strength antenna designed as an improved direct replacement for the standard Cessna 3-hole mounting configuration. The CI 175 has been re-tested and upgraded to the new RTCA DO-160D environmental requirements and offers the 118 to 137 MHz frequency associated with DO-186A MOPS.
| MODEL CI 175 VHF Antenna | |
| Electrical | |
| Frequency | 118 - 137 MHz |
| VSWR | 2.5:1 Maximum |
| Polarization | Vertical |
| Radiation Pattern | Omnidirectional |
| Impedance | 50 Ohms |
| Power | 50 Watts |
| Mechanical | |
| Weight | 0.5 lbs. Maximum |
| Height | 18.75 in. Maximum |
| Material | Cast housing / Fiberglass Whip |
| Finish | Polyurethane Enamel |
| Connector | BNC (female) |
| Environmental | |
| Temperature | -55ºC to +85ºC |
| Altitude | 50,000 ft. |
| Air Speed | 250 Knots TAS |
| Federal Specifications | |
| RTCA | DO 160 |
| Environmental Category | [D2X]ACB[R(C,C1)U(F,F1)] XWFDXSXXXXX[XX]X[XXXX]XAX |
| FAA TSO | C37d, C38d |
| ORDER OPTIONS | |
| Connector | |
| BNC | Standard |
| Color | |
| White | Standard |
