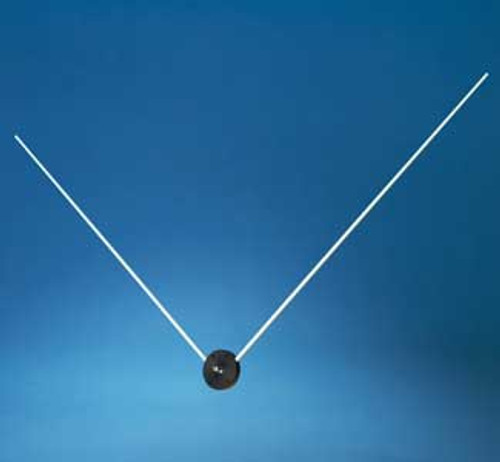

"V" Dipole VOR/Glide Slope Antenna with detachable elements was developed specifically for Beech Bonanza aircraft and encompasses reduced static capability with the use of P-Stat paint and bleeder resistors. Integral ferrite balun provides for higher radiation efficiency. Not approved for helicopter installations.
| MODEL CI 158C-3 V-Dipole | |
| Electrical | |
| Frequency | 108 - 118 MHz (VOR / LOC) 329 - 335 MHz (Glide Slope) |
| VSWR | 3.0:1 108 - 118 MHz (VOR/LOC) 3.0:1 329 - 335 MHz (Glide Slope) |
| Polarization | Horizontal |
| Radiation Pattern | Dipole |
| Impedance | 50 Ohms Nominal |
| Power | Receive only |
| Mechanical | |
| Weight | 0.35 lb. Maximum |
| Height | 16.70 in. Maximum |
| Material | Delrin housing / Polyester glass laminate over stainless radiators |
| Finish | Black housing / Polyurethane paint over P-Stat paint |
| Connector | BNC |
| Environmental | |
| Temperature | -55ºC to +85ºC |
| Altitude | 50,000 ft. |
| Air Speed | 250 Knots TAS @ 25,000 ft. |
| Federal Specifications | |
| RTCA Environmental | DO-160 |
| Environmental Category | B2ALXXXXXXXXXXX |
| FAA TSO | C34c, C38c, C40c |
| RTCA MOPS | DO-192, DO-195, DO-196 |
| ORDER OPTIONS | |
| Connector | |
| BNC | Standard |
| Colors | |
| White | Radiators only |
