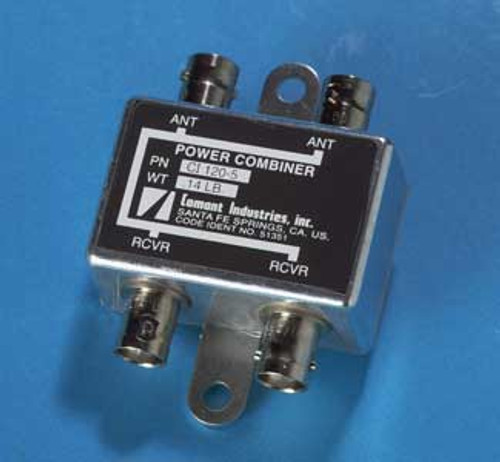

Two input - two output Power Combiner is standard equipment with Comant's CI 120-200G/S-L as supplied to Cessna. A typical CI 120-200G/S-L set up is depicted in the inset of this page. The CI 120-5 provides for two separate cable runs to the avionics installation for NAV 1 and NAV 2 receivers.
|
MODEL CI 120-5 Power Combiner VOR/GS |
|
| Electrical | |
| Frequency | 108 - 118 and 329 - 335 MHz |
| Power Split | 6 dB |
| VSWR | 1.5:1 Maximum |
| Insertion Loss | 1.5 dB Maximum |
| Isolation | 20 dB Minimum |
| Amplitude Balance | ± 0.5 dB |
| Impedance RF | 50 Ohms Nominal |
| Phase | 180° ±5° Between Antenna Ports 0° ±5° Between Antenna Ports |
| Mechanical | |
| Weight | 0.1 lb. Maximum |
| Height | 0.88 in. Maximum |
| Material | Die Cast Aluminum |
| Finish | Aluminum |
| Connector | BNC (Female) |
| Environmental | |
| Internal Mount | |
| Federal Specifications | |
| RTCA Environmental | DO-160C |
| Environmental Category | [A2F2]-AC[CLMY]XRXXXSXXXXXXXC |
| FAA TSO | C34c, C36c, C40a |
| RTCA MOPS | DO-192, DO-195, DO-196 |
| ORDER OPTIONS | |
| Connector | |
| BNC | Standard |
