Shipping Weight
3.87 pounds
ECCN
7A994
Manufacturer P/N
CI120-200G-S
Schedule B Code
9803.20.0000
Pack Quantity
1

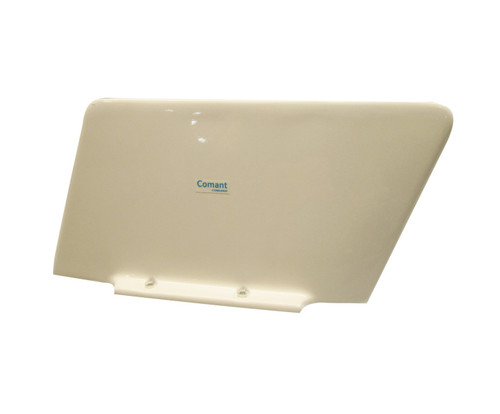

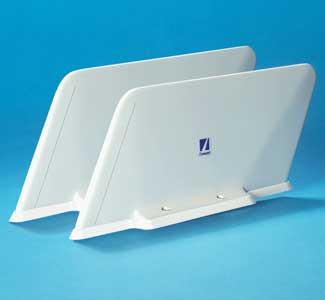

VOR/GS navigation antenna set provides optimum VOR performance when used for area navigation. Antenna system qualified for use on single, twin, jet and helicopter aircraft. Also provides glide slope reception capability. Complete set includes a pair (2) of blades, each with single BNC connector output, and two coax interconnect cables. Dual BNC output combiner, providing for a seperate RF cable run to the avionics installation for NAV 1 and NAV 2 receivers, is included.
| MODEL CI 120-200G/S VOR/GS Antenna | |
| Electrical | |
| Frequency | 108 - 118 MHz (VOR / LOC) 329 - 335 MHz (Glide Slope) |
| VSWR | 6.0:1 108 - 118 MHz (VOR/LOC) 5.0:1 329 - 335 MHz (Glide Slope) |
| Polarization | Horizontal |
| Radiation Pattern | Omnidirectional |
| Impedance | 50 Ohms Nominal |
| Power | Receive Only |
| Mechanical | |
| Weight | 1.4 lb. Maximum |
| Height | 6.0 in. Maximum |
| Material | Molded Radome |
| Finish | Polyurethane Enamel |
| Connector | BNC / Single output combiner |
| Environmental | |
| Temperature | -55ºC to +85ºC |
| Altitude | 50,000 ft. |
| Air Speed | 600 Knots TAS @ 25,000 ft. |
| Federal Specifications | |
| RTCA Environmental | DO-160D |
| Environmental Category | [(F2)X]ACE[(T)E1P]XRXXXSXXXXXXXXXCX |
| FAA TSO | C34e, C36e, C40c |
| RTCA MOPS | DO-192, DO-195, DO-196 |
| ORDER OPTIONS | |
| Connector | |
| BNC | Standard |
| Color | |
| White | Standard |
| Gasket | |
| C10214 | |
