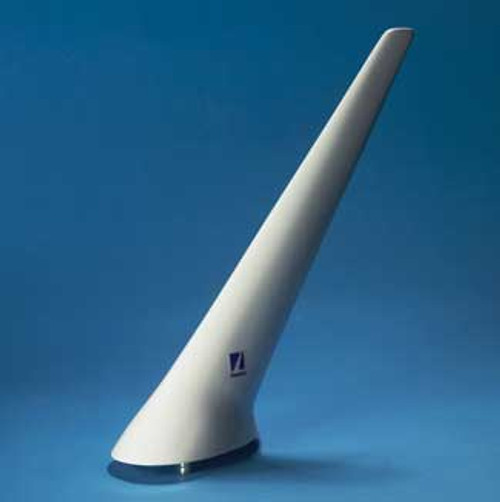

Designed for large single or twin-engine aircraft. The antenna assembly enclosed in an aerodynamically shaped, injection molded polyester glass shell with internal components foamed in place for mechanical integrity. Reduced height convenient for mounting to the underside of an aircraft. The 119 has been re-tested and upgraded to the new RTCA DO-160D environmental requirements and offers the 118 to 137 MHz frequency associated with DO-186A MOPS.
| MODEL CI 119 VHF Blade Antenna | |
| Electrical | |
| Frequency | 118 - 137 MHz |
| VSWR | 2.5:1 Maximum |
| Polarization | Vertical |
| Radiation Pattern | Omnidirectional |
| Impedance | 50 Ohms |
| Power | 25 Watts |
| Mechanical | |
| Weight | 1.25 lbs. Maximum |
| Height | 13.00 in. Maximum |
| Material | Valox 420 |
| Finish | Polyurethane Enamel |
| Connector | BNC |
| Environmental | |
| Temperature | -55ºC to +85ºC |
| Altitude | 35,000 ft. |
| Air Speed | 350 Knots TAS @ 25,000 ft. |
| Federal Specifications | |
| RTCA Environmental | DO-160D |
| Environmental Category
| [D2X]ACB[R(C,C1)U(F,F1) XWFDXSXXXXX[XX]X[XXXX]XAX |
| FAA TSO | C37d, C38d |
| RTCA MOPS | DO-186A |
| ORDER OPTIONS | |
| Connector | |
| BNC | Standard |
| Color | |
| White | Standard |
| Gasket | |
| C12704 Cork Neoprene | |
