Approvals and Conformities
Product Attributes
Country of Origin
United States
Shipping Weight
0.4 pounds
ECCN
7A994
Manufacturer P/N
CI1120
Schedule B Code
9803.20.0000
Pack Quantity
1
Provides operation between a single VOR receiver and a single glide slope receiver from the same OR/glide slope antenna. Offers polarized VOR and GS output connectors. For military applications.

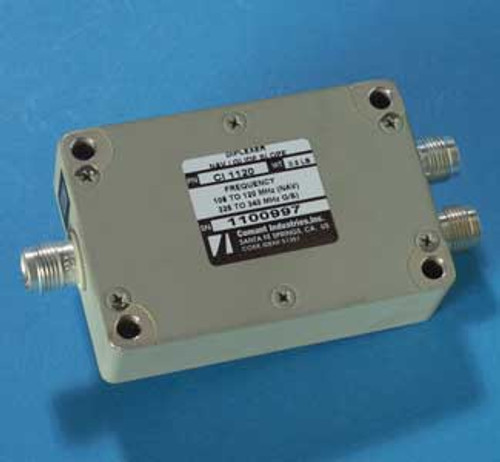

| MODEL CI 1120 Diplexer / Single VOR / Single GS | |
| Electrical | |
| Frequency | 108 - 120 and 325 - 340 MHz |
| VSWR | 1.5:1 Maximum |
| Insertion Loss | 0.5 dB Maximum |
| Isolation | 40 dB Minimum |
| Impedance RF | 50 Ohms |
| Mechanical | |
| Weight | 0.44 lb. Maximum |
| Height | 0.812 in. Maximum |
| Material | Die Cast Aluminum |
| Finish | Flat Grey Epoxy Paint |
| Connector | TNC (Female) |
| Environmental | |
| Internal Mount | |
| Federal Specifications | |
| MIL Standards | MIL-E-5400 |
| MIL-STD-810B (Vibration) | |
| MIL-B-5087 | |
| MIL-C-39012 (Connector) | |
| ORDER OPTIONS | |
| Connector | |
| TNC | Standard |
| Color | |
| Flat Grey | Standard |
