Product Attributes
Country of Origin
United States
Shipping Weight
0.26 pounds
ECCN
7A994
Manufacturer P/N
CI1114
Schedule B Code
9803.20.0000
Pack Quantity
1

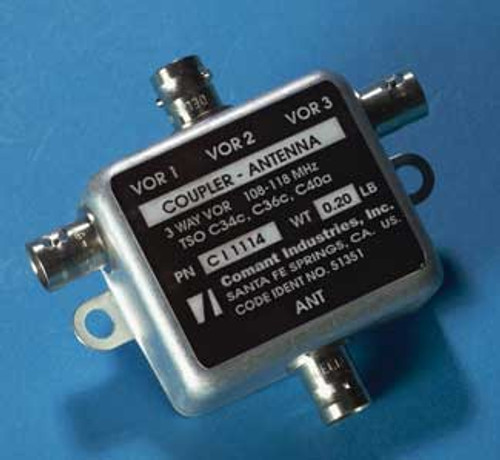

Coupler provides for use of three VOR receivers from one VOR antenna. Coupler circuitry is housed in stamped enclosure to ensure high reliability.
| MODEL CI 1114 Coupler VOR / Three Way | |
| Electrical | |
| Frequency | 108 - 118 MHz |
| VSWR | 1.5:1 Maximum |
| Insertion Loss | 0.5 dB Maximum |
| Isolation | 20 dB Minimum |
| Impedance RF | 50 Ohms |
| Mechanical | |
| Weight | 0.25 lb. Maximum |
| Height | 0.80 in. Maximum |
| Material | Aluminum |
| Finish | Aluminum |
| Connector | BNC (Female) |
| Environmental | |
| Internal Mount | |
| Federal Specifications | |
| FAA TSO | C36c, C40a |
| ORDER OPTIONS | |
| Connector | |
| BNC | Standard |
